CTLVH3012F-100M

Fixed Inductors Overview

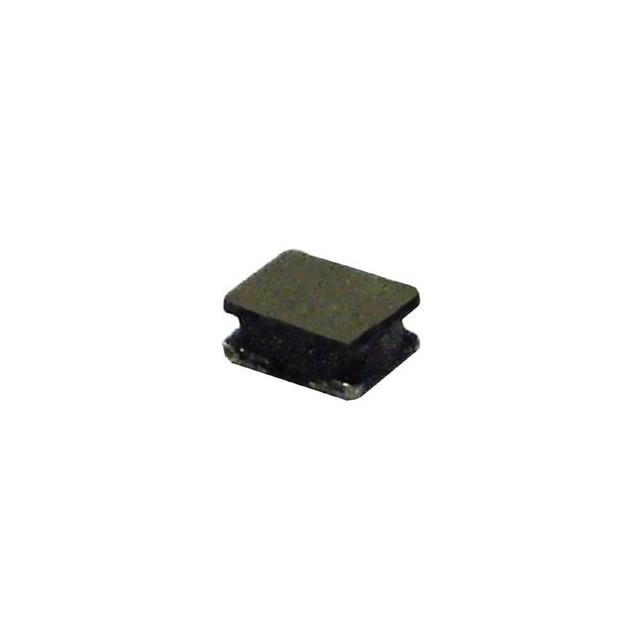

The CTLVH3012F-100M is a shielded wirewound power inductor manufactured by Central Technologies. It features a nominal inductance of 10 µH with a tolerance of ±20%. The component has a maximum DC resistance (DCR) of 370 mΩ and supports a maximum rated current of 1.15 A. Designed for surface-mount applications, it utilizes a nonstandard package configuration suitable for compact circuit layouts.

Fixed Inductors Feature Summary

• Shielded wirewound construction to minimize electromagnetic interference
• Surface-mount design for automated assembly integration
• Nonstandard physical footprint optimized for specific board space constraints

Fixed Inductors Applications

• General-purpose power supply filtering
• DC-DC converter energy storage
• Signal processing circuits requiring magnetic shielding

Fixed Inductors Procurement Notes

Verify the exact physical dimensions against the manufacturer's mechanical drawing before PCB layout finalization, as the package is classified as nonstandard. Confirm that the 1.15 A current rating aligns with the thermal requirements of the target application environment. Ensure compatibility with standard reflow soldering profiles for surface-mount components.

Fixed Inductors Selection Notes

Select this component when a shielded inductor is required to prevent magnetic coupling in dense layouts. The 10 µH value suits moderate-frequency switching applications. Consider the 370 mΩ DCR impact on efficiency and the 1.15 A limit for load handling. Compare against standard footprints if space optimization is not the primary constraint.

Fixed Inductors Part Context

This part belongs to the fixed inductor category within Central Technologies' portfolio. It serves as a passive component for managing current ripple and storing energy in electronic circuits. The shielded design distinguishes it from unshielded alternatives, offering improved performance in noise-sensitive environments.

Fixed Inductors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-compatibility with other shielded power inductors based on inductance, current rating, and physical dimensions.
