CTML1206F-8R2K

Fixed Inductors Overview

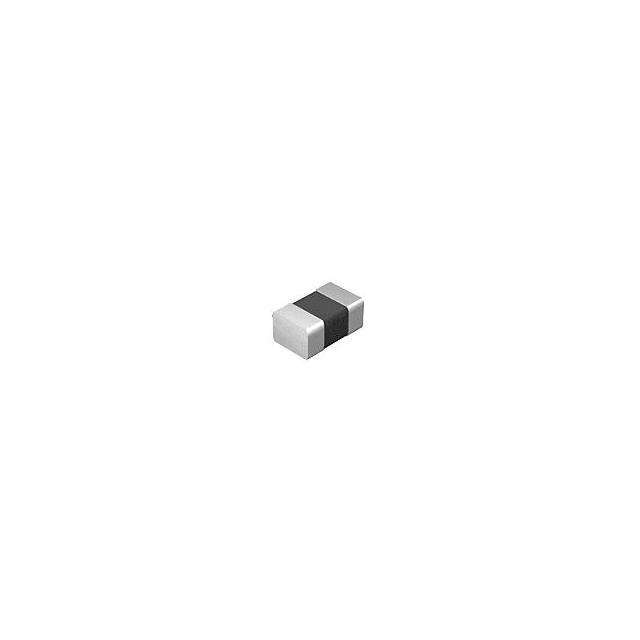

The CTML1206F-8R2K is a shielded multilayer ferrite inductor from Central Technologies, designed for high-frequency and low-voltage applications. It features an 8.2 µH nominal inductance with a maximum DC resistance of 900 mΩ and a rated current of 25 mA. The component utilizes a surface-mount 1206 package construction.

Fixed Inductors Feature Summary

• Shielded multilayer construction to minimize electromagnetic interference
• Optimized for high-frequency performance and low voltage operations

Fixed Inductors Applications

• RF circuits
• High-speed data handling systems
• General purpose filtering

Fixed Inductors Procurement Notes

Verify the specific tolerance code required for the order, as specifications may vary by suffix. Confirm RoHS compliance status and lead times directly with authorized distributors or the manufacturer before finalizing procurement plans.

Fixed Inductors Selection Notes

Select this component when shielding is necessary to prevent magnetic field coupling in dense layouts. Ensure the operating current does not exceed the 25 mA rating to maintain inductance stability and thermal safety within the specified temperature range.

Fixed Inductors Part Context

This part belongs to the CTML1206 series of multi-layer chip inductors manufactured by Central Technologies. The series offers various inductance values ranging from 0.047 µH to 33 µH, all sharing the same 1206 footprint and ferrite core technology.

Fixed Inductors Replacement Considerations

Direct substitutes are not explicitly confirmed in public documentation. Cross-reference with other 1206 shielded ferrite inductors having 8.2 µH ±10% tolerance and similar current ratings if exact replacement is needed.
