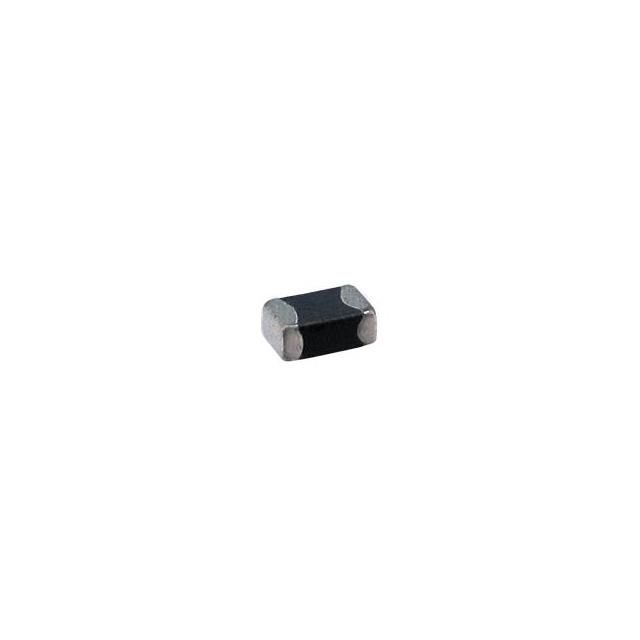

CTMLP080504BF-4R7M

$0.27

Description：4.7UH SMD MULTIL POWER INDUCTOR
Series：CTMLP080504BF
Mfr：Central Technologies
Package：Tape & Reel (TR)

SKU:0acf024375a2 Category: Fixed Inductors Brand: Central Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CTMLP080504BF-4R7M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is 4.7UH SMD MULTIL POWER INDUCTOR. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for CTMLP080504BF-4R7M

Description：4.7UH SMD MULTIL POWER INDUCTOR
Series：CTMLP080504BF
Mfr：Central Technologies
Package：Tape & Reel (TR)
Type：Multilayer
Material - Core：Ferrite
Inductance：4.7 µH
Tolerance：±20%
Current Rating (Amps)：800 mA
Current - Saturation (Isat)：200mA
Shielding：Shielded
DC Resistance (DCR)：230mOhm
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：3 MHz
Mounting Type：Surface Mount
Package / Case：0805 (2012 Metric)
Supplier Device Package：805
Size / Dimension：0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)：0.039" (1.00mm)
Features：-

Fixed Inductors datasheet and documents for CTMLP080504BF-4R7M

CTMLP080504BF-4R7M

Fixed Inductors Overview

The CTMLP080504BF-4R7M is a multilayer fixed inductor manufactured by Central Technologies. It features a ferrite core and operates within a temperature range of -55°C to +125°C. The nominal inductance is 4.7 µH with a tolerance of ±20%. This component is designed for surface-mount applications.

Fixed Inductors Feature Summary

Multilayer construction with a ferrite core
Surface-mount device (SMD) form factor

Fixed Inductors Applications

General electronic filtering
Choke applications

Fixed Inductors Procurement Notes

Verify the specific manufacturer datasheet for detailed electrical characteristics, including DC resistance and current ratings, as these parameters are not provided in the available documentation. Confirm RoHS compliance status directly with the supplier or official documentation before integration into final products.

Fixed Inductors Selection Notes

Select this component when a 4.7 µH inductance value is required in an 0805 package size. Ensure the application environment remains within the specified -55°C to +125°C operating temperature range. Verify that the ±20% tolerance aligns with circuit design requirements.

Fixed Inductors Part Context

This part belongs to the CTMLP080504BF series of fixed inductors from Central Technologies. The series offers various inductance values in a standard 0805 surface-mount footprint, utilizing multilayer technology with ferrite cores for compact electronic designs.
