CTMLP080504CF-2R2M

Fixed Inductors Overview

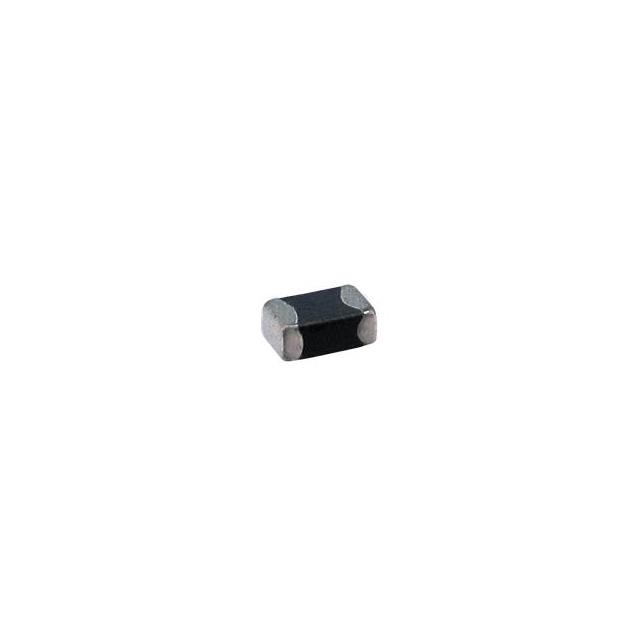

The CTMLP080504CF-2R2M is a surface-mount multilayer power inductor from Central Technologies, featuring a ferrite core and an inductance of 2.2 µH with ±20% tolerance. It has a DC resistance of 125 mΩ, a current rating of 1.6 A, and operates within a temperature range of -55°C to 125°C. The component is tested at 3 MHz and conforms to RoHS standards.

Fixed Inductors Feature Summary

• Multilayer construction with ferrite core for power applications
• Surface mount design suitable for automated assembly
• RoHS compliant manufacturing process

Fixed Inductors Applications

• Power supply filtering
• Choke circuits
• General purpose inductive components

Fixed Inductors Procurement Notes

Verify the exact part number against official Central Technologies documentation to confirm specifications. Ensure that the ordering suffix matches the required tolerance and compliance status. Cross-reference datasheet parameters such as DC resistance and current rating with system requirements before procurement.

Fixed Inductors Selection Notes

Select this component based on its 2.2 µH inductance and 1.6 A current rating. Consider the 125 mΩ DC resistance for efficiency calculations. Verify compatibility with the target operating temperature range of -55°C to 125°C. Confirm surface mount package dimensions fit the PCB layout constraints.

Fixed Inductors Part Context

This component belongs to the CTMLP series of multilayer chip inductors manufactured by Central Technologies. The series offers various inductance values and current ratings designed for surface mount applications. The specific model utilizes a ferrite core to provide stable performance in power electronics circuits.

Fixed Inductors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer catalogs for direct equivalents or verify cross-references through official distributor channels.
