CTMMP104F-1R0M

Fixed Inductors Overview

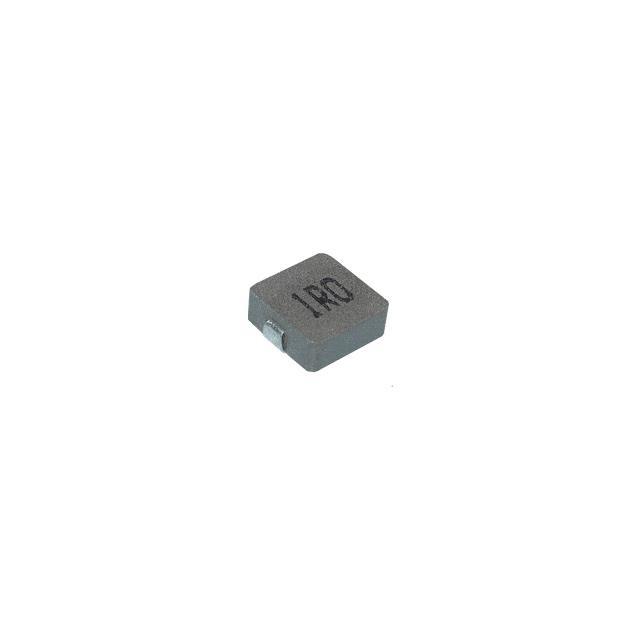

The CTMMP104F-1R0M is a shielded surface-mount power inductor from Central Technologies. It features a nominal inductance of 1 µH with a ±20% tolerance. The component has a maximum DC resistance of 3.1 mΩ and a current rating of 26 A. It operates within a temperature range of -55°C to 125°C. The package dimensions are 0.398 inches in length.

Fixed Inductors Feature Summary

• Shielded construction for reduced electromagnetic interference
• High current handling capability suitable for power applications
• Surface mount design for automated assembly

Fixed Inductors Applications

• Power supply circuits
• DC-DC converter modules
• General purpose power filtering

Fixed Inductors Procurement Notes

Verify the specific manufacturer datasheet for the CTMMP104F series to confirm electrical parameters and mechanical dimensions. Ensure the selected variant matches the required inductance and current ratings for the target application. Check for RoHS compliance status and lead finish specifications before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when a shielded inductor with high current capacity is required for space-constrained designs. The 1 µH value and 26 A rating make it suitable for low-inductance, high-current power stages. Consider the operating temperature range and physical footprint compatibility with the PCB layout during the design phase.

Fixed Inductors Part Context

This part belongs to the CTMMP series of fixed inductors manufactured by Central Technologies. The series offers various inductance values and current ratings in a compact surface-mount package. The '1R0M' suffix indicates a 1.0 µH nominal value with standard tolerance.

Fixed Inductors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer cross-reference guides or authorized distributors for compatible alternatives.
