CTMMP1307AF-2R2M

Fixed Inductors Overview

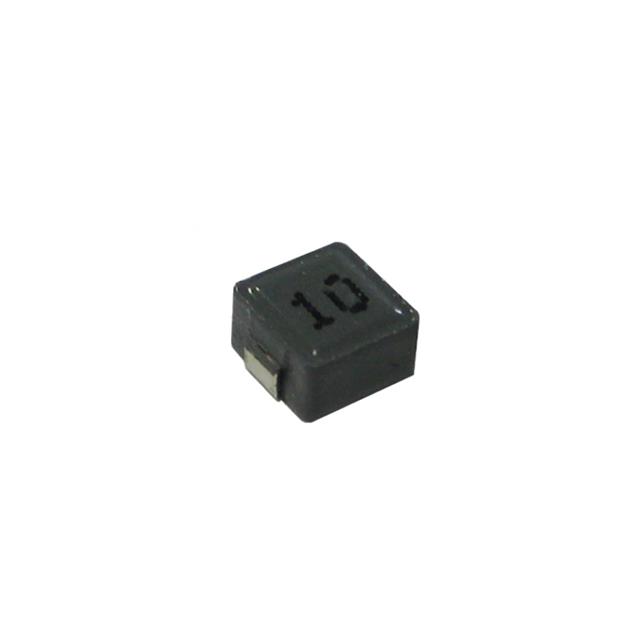

The CTMMP1307AF-2R2M is a shielded fixed surface-mount inductor manufactured by Central Technologies. It features an inductance value of 2.2 µH with a tolerance of ±20%. The component supports a rated current of 3.7 A and has a maximum DC resistance of 65 mΩ. Designed for compact electronic applications, it utilizes a shielded construction to minimize electromagnetic interference.

Fixed Inductors Feature Summary

• Shielded magnetic structure reduces external electromagnetic interference
• Surface-mount design facilitates automated PCB assembly
• Fixed inductance configuration ensures stable circuit performance

Fixed Inductors Applications

• DC-DC converter input and output filtering
• Power supply circuit energy storage
• Signal processing filter networks

Fixed Inductors Procurement Notes

Verify the manufacturer part number CTMMP1307AF-2R2M against official Central Technologies documentation to confirm specifications. Ensure compatibility with required current ratings and thermal management requirements before integration into final designs.

Fixed Inductors Selection Notes

Select this component when a 2.2 µH inductance value is required with high current handling capabilities up to 3.7 A. Consider the low DC resistance of 65 mΩ for efficiency-critical power paths and the shielded package for noise-sensitive environments.

Fixed Inductors Part Context

This component belongs to the CTMMP series of fixed inductors from Central Technologies. The series offers various inductance values tailored for different power management needs, providing reliable performance in space-constrained electronic assemblies through standardized surface-mount packaging.

Fixed Inductors Replacement Considerations

Consult official substitution lists or cross-reference databases for compatible alternatives. Verify that any substitute matches the 2.2 µH inductance, 3.7 A current rating, and 65 mΩ resistance specifications while maintaining equivalent physical dimensions.
