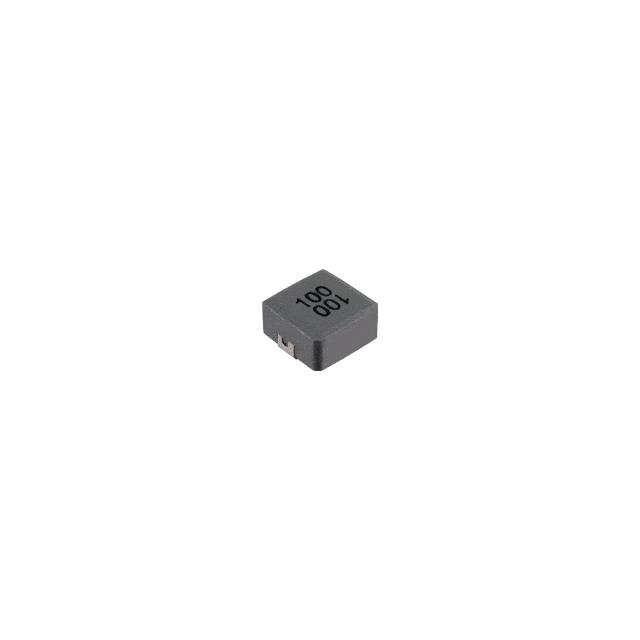

CTMMP2012CF-3R3M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is SMD Shielded Power Inductor. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CTMMP2012CF-3R3M
- Description：SMD Shielded Power Inductor
- Series：-
- Mfr：Central Technologies
- Package：Bulk
- Type：-
- Material - Core：-
- Inductance：3.3 µH
- Tolerance：±20%
- Current Rating (Amps)：8:00 AM
- Current - Saturation (Isat)：-
- Shielding：Shielded
- DC Resistance (DCR)：32mOhm
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-40°C ~ 125°C
- Inductance Frequency - Test：-
- Mounting Type：Surface Mount
- Package / Case：-
- Supplier Device Package：-
- Size / Dimension：0.217" L x 0.205" W (5.50mm x 5.20mm)
- Height - Seated (Max)：0.110" (2.80mm)
- Features：-
Fixed Inductors datasheet and documents for CTMMP2012CF-3R3M
Fixed Inductors Overview
The CTMMP2012CF-3R3M is a shielded surface-mount power inductor from Central Technologies. It features an inductance of 3.3 µH with a tolerance of ±20%. The component has a maximum DC resistance of 32 mΩ and a current rating of 8 A. It operates within a temperature range of -40°C to +125°C.
Fixed Inductors Feature Summary
- Shielded construction for reduced electromagnetic interference
- Surface-mount design for automated assembly
- High current handling capability
Fixed Inductors Applications
- Power supply circuits
- DC-DC converter modules
- General-purpose filtering applications
Fixed Inductors Procurement Notes
Verify the specific manufacturer datasheet for complete electrical characteristics, including saturation current and thermal derating curves. Confirm that the package dimensions and terminal configuration match the target PCB footprint requirements before finalizing procurement decisions.
Fixed Inductors Selection Notes
Select this component when a compact shielded inductor is required for high-current applications. Ensure the operating environment stays within the specified -40°C to +125°C range. Verify that the 3.3 µH value meets the circuit's energy storage needs.
Fixed Inductors Part Context
This part belongs to the CTMMP series of shielded power inductors manufactured by Central Technologies. The series offers various inductance values tailored for surface-mount power electronics, providing reliable performance in space-constrained designs.
Fixed Inductors Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult official distributor databases or manufacturer cross-reference guides for compatible alternatives.
