CTMMP2206F-2R2M

$1.12

Description：SMD Shielded Power Inductor
Series：-
Mfr：Central Technologies
Package：Bulk

SKU:8577ce285813 Category: Fixed Inductors Brand: Central Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

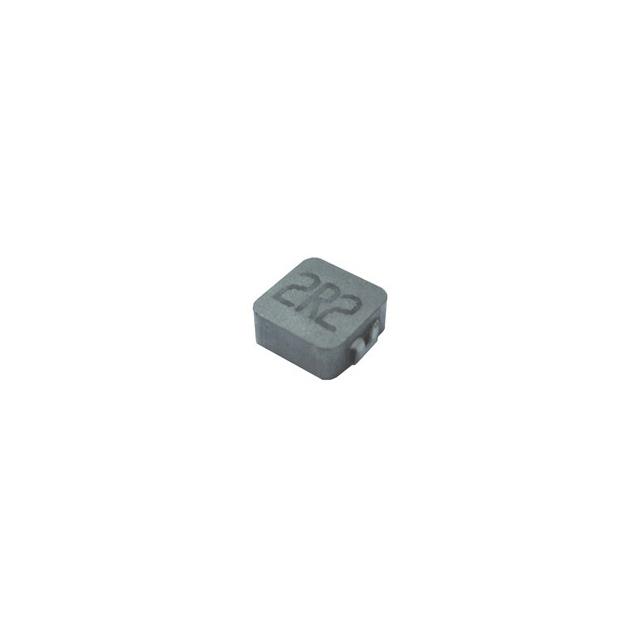

CTMMP2206F-2R2M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is SMD Shielded Power Inductor. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for CTMMP2206F-2R2M

Description：SMD Shielded Power Inductor
Series：-
Mfr：Central Technologies
Package：Bulk
Type：-
Material - Core：-
Inductance：2.2 µH
Tolerance：±20%
Current Rating (Amps)：6:00 AM
Current - Saturation (Isat)：-
Shielding：Shielded
DC Resistance (DCR)：68mOhm
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：-
Mounting Type：Surface Mount
Package / Case：-
Supplier Device Package：-
Size / Dimension：0.213" L x 0.224" W (5.40mm x 5.70mm)
Height - Seated (Max)：0.197" (5.00mm)
Features：-

Fixed Inductors datasheet and documents for CTMMP2206F-2R2M

CTMMP2206F-2R2M

Fixed Inductors Overview

The CTMMP2206F-2R2M is a shielded surface-mount power inductor manufactured by Central Technologies. It features a nominal inductance of 2.2 µH with a tolerance of ±20%. The component has a maximum seated height of 5.00 mm and measures 5.40 mm in length by 5.70 mm in width. It supports an operating temperature range from -55°C to 125°C and offers a current rating of 6 A with a low DC resistance of 68 mOhm.

Fixed Inductors Feature Summary

Shielded construction minimizes electromagnetic interference
Low DC resistance for efficient power delivery
High current handling capability up to 6 A

Fixed Inductors Applications

DC-DC converter circuits
Power supply filtering
General purpose power electronics

Fixed Inductors Procurement Notes

Verify the specific package dimensions and electrical ratings against the official datasheet before integration. Confirm that the supplier provides valid traceability documentation. Ensure the component meets RoHS compliance requirements for your manufacturing process. Check for any specific storage or handling instructions provided by the manufacturer to maintain reliability.

Fixed Inductors Selection Notes

Select this component when a shielded inductor with high current capacity is required for space-constrained designs. The 2.2 µH value suits applications needing moderate energy storage. Consider the 6 A rating for load requirements. The surface-mount format facilitates automated assembly. Evaluate thermal performance within the specified -55°C to 125°C range for environmental suitability.

Fixed Inductors Part Context

This part belongs to the CTMMP series of fixed inductors from Central Technologies. The series includes various inductance values and current ratings. The CTMMP2206F-2R2M specifically targets power management applications requiring compact, shielded components. It complements other passive components in modern electronic systems.
