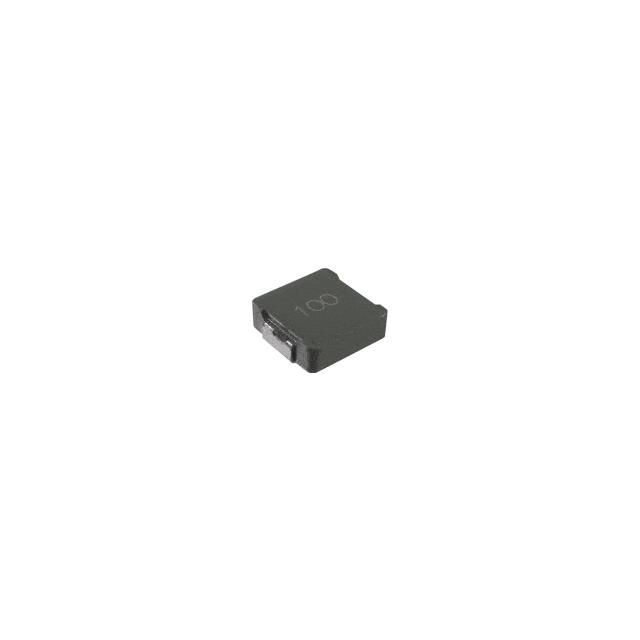

CTMMP2709F-100M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is SMD Shielded Power Inductor. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CTMMP2709F-100M
- Description：SMD Shielded Power Inductor
- Series：-
- Mfr：Central Technologies
- Package：Bulk
- Type：-
- Material - Core：-
- Inductance：10 µH
- Tolerance：±20%
- Current Rating (Amps)：5:00 AM
- Current - Saturation (Isat)：-
- Shielding：Shielded
- DC Resistance (DCR)：129mOhm
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-55°C ~ 125°C
- Inductance Frequency - Test：-
- Mounting Type：Surface Mount
- Package / Case：-
- Supplier Device Package：-
- Size / Dimension：0.287" L x 0.268" W (7.30mm x 6.80mm)
- Height - Seated (Max)：0.157" (4.00mm)
- Features：-
Fixed Inductors datasheet and documents for CTMMP2709F-100M
Fixed Inductors Overview
The CTMMP2709F-100M is a shielded power inductor from Central Technologies, designed for surface-mount applications. It features a nominal inductance of 10 µH with a tolerance of ±20%. The component has a maximum DC resistance of 34 mΩ and supports an RMS current of 11 A and a saturation current of 16 A. It operates within a temperature range of -55°C to +125°C.
Fixed Inductors Feature Summary
- Shielded construction minimizes electromagnetic interference
- High current handling capability for power circuits
- Wide operating temperature range ensures reliability
Fixed Inductors Applications
- Power supply modules
- DC-DC converters
- General purpose power filtering
Fixed Inductors Procurement Notes
Verify the specific part number against manufacturer documentation to confirm electrical ratings and compliance status. Ensure the selected variant matches the required inductance and current specifications for the target application circuit design.
Fixed Inductors Selection Notes
Select this component based on its 10 µH inductance and high current capacity requirements. Consider the surface-mount package dimensions and thermal performance characteristics when designing the PCB layout for optimal heat dissipation and signal integrity.
Fixed Inductors Part Context
This component belongs to the CTMMP2709F series of shielded power inductors manufactured by Central Technologies. The series offers various inductance values tailored for high-current power electronics applications requiring compact surface-mount solutions.
Fixed Inductors Replacement Considerations
Consult official substitution lists or cross-reference databases for compatible shielded power inductors with matching 10 µH inductance, similar current ratings, and compatible footprint dimensions.
