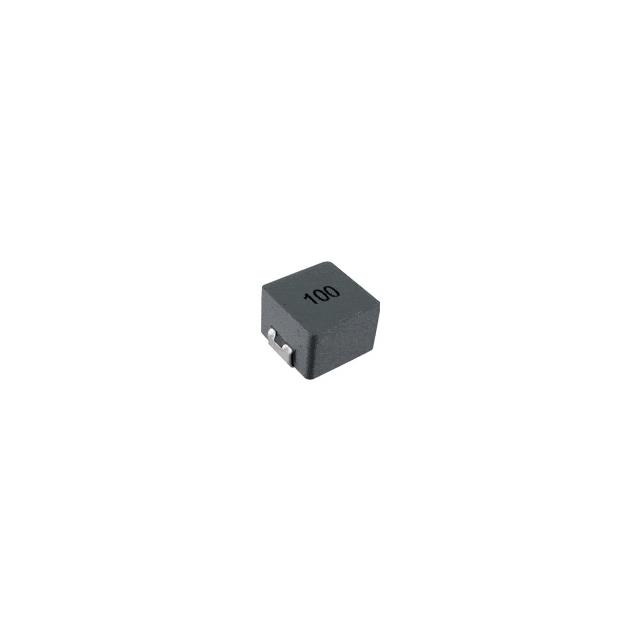

CTMMP2818AF-R47M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is SMD Shielded Power Inductor. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CTMMP2818AF-R47M
- Description：SMD Shielded Power Inductor
- Series：-
- Mfr：Central Technologies
- Package：Bulk
- Type：-
- Material - Core：-
- Inductance：0.47 µH
- Tolerance：±20%
- Current Rating (Amps)：30 A
- Current - Saturation (Isat)：-
- Shielding：Shielded
- DC Resistance (DCR)：3.5mOhm
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-40°C ~ 125°C
- Inductance Frequency - Test：-
- Mounting Type：Surface Mount
- Package / Case：-
- Supplier Device Package：-
- Size / Dimension：0.287" L x 0.260" W (7.30mm x 6.60mm)
- Height - Seated (Max)：0.189" (4.80mm)
- Features：-
Fixed Inductors datasheet and documents for CTMMP2818AF-R47M
Fixed Inductors Overview
The CTMMP2818AF-R47M is a general purpose shielded power inductor from the CTIHLP2818AF series manufactured by Central Technologies. It features a nominal inductance of 0.47 µH with a tolerance of ±20%. The component has a typical DC resistance (DCR) of 3.5 mW, an RMS current rating (Irms) of 22 A, and a saturation current (Isat) of 30 A.
Fixed Inductors Feature Summary
- Shielded magnetic structure for reduced electromagnetic interference
- High current handling capability suitable for power applications
- General purpose design for versatile circuit integration
Fixed Inductors Applications
- Power supply filtering
- DC-DC converter circuits
- General electronic equipment power stages
Fixed Inductors Procurement Notes
Verify the part number suffix to confirm the specific inductance value and tolerance. Ensure the selected component meets the required thermal performance for the intended application environment. Cross-reference the manufacturer's latest datasheet for any updates on RoHS compliance or material declarations before finalizing procurement orders.
Fixed Inductors Selection Notes
Select this component based on the required inductance value and current ratings. Consider the physical size constraints and mounting requirements. Evaluate the thermal characteristics to ensure the device can handle the expected operating currents without exceeding temperature limits. Compare alternative values within the same series if different electrical parameters are needed.
Fixed Inductors Part Context
This inductor belongs to the CTIHLP2818AF series, which offers various inductance values ranging from 0.47 µH to 22 µH. All parts in this series share similar physical dimensions and shielding characteristics but differ in their electrical specifications such as inductance, DCR, and current ratings.
Fixed Inductors Replacement Considerations
Other part numbers in the CTIHLP2818AF series may serve as substitutes if different inductance values are acceptable. Verify compatibility with existing circuit designs when considering alternatives.
