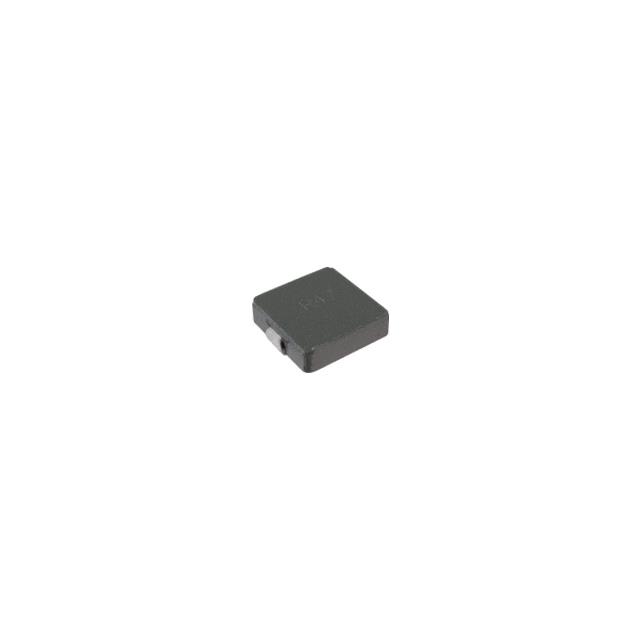

CTMMP5015F-R82M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is SMD Shielded Power Inductor. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CTMMP5015F-R82M
- Description：SMD Shielded Power Inductor
- Series：-
- Mfr：Central Technologies
- Package：Bulk
- Type：-
- Material - Core：-
- Inductance：0.82 µH
- Tolerance：±20%
- Current Rating (Amps)：44 A
- Current - Saturation (Isat)：-
- Shielding：Shielded
- DC Resistance (DCR)：3mOhm
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-55°C ~ 125°C
- Inductance Frequency - Test：-
- Mounting Type：Surface Mount
- Package / Case：-
- Supplier Device Package：-
- Size / Dimension：0.551" L x 0.508" W (14.00mm x 12.90mm)
- Height - Seated (Max)：0.150" (3.80mm)
- Features：-
Fixed Inductors datasheet and documents for CTMMP5015F-R82M
Fixed Inductors Overview
The CTMMP5015F-R82M is a shielded surface-mount power inductor from Central Technologies with an inductance of 0.82 µH and a tolerance of ±20%. It features a maximum DC resistance of 3 mΩ, a typical RMS current rating of 44 A, and a saturation current rating of 60 A. The component operates within a temperature range of -55°C to +125°C and utilizes a rectangular package.
Fixed Inductors Feature Summary
- Shielded magnetic structure for reduced electromagnetic interference
- High current handling capability suitable for power supply applications
- Surface-mount design for automated assembly processes
Fixed Inductors Applications
- DC-DC converter output filtering
- Point-of-load (POL) regulation stages
- Power supply input/output chokes
Fixed Inductors Procurement Notes
Verify the specific suffix 'R82M' confirms the 0.82 µH value and ±20% tolerance. Ensure the ordering documentation specifies the RoHS compliant variant if required by project standards. Cross-reference the manufacturer's latest datasheet to confirm thermal ratings and pin configuration before finalizing procurement.
Fixed Inductors Selection Notes
Select this component when high current density and low impedance are critical requirements. The 0.82 µH value suits high-frequency switching applications. Evaluate the 44 A RMS and 60 A Isat ratings against peak load conditions. Consider the surface-mount footprint compatibility with existing PCB layouts during the design phase.
Fixed Inductors Part Context
This part belongs to the CTMMP5015F series of shielded power inductors. The series offers various inductance values ranging from 0.47 µH to 10 µH. All variants share similar physical dimensions and shielding technologies, differing primarily in inductance, DC resistance, and current ratings.
Fixed Inductors Replacement Considerations
Direct substitutes include other CTMMP5015F series parts with matching 0.82 µH specifications. Verify that alternative manufacturers offer equivalent saturation current and RMS current capabilities to maintain circuit performance.
