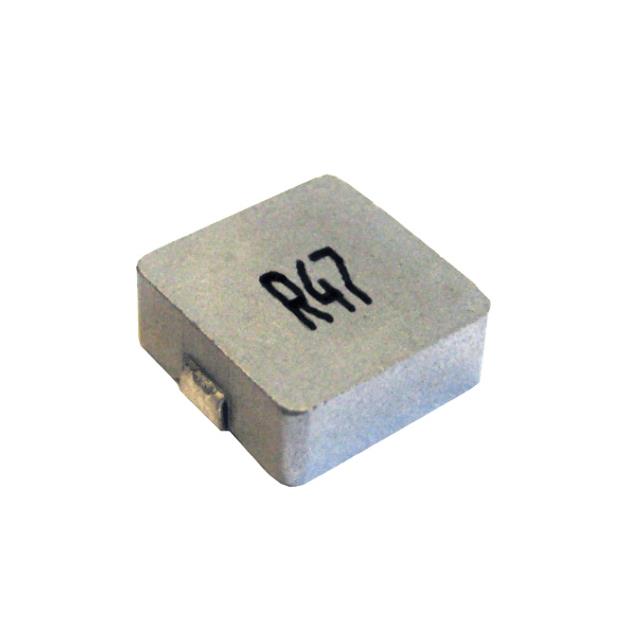

CTMMP5020F-6R8M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is SMD Shielded Power Inductor. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CTMMP5020F-6R8M
- Description：SMD Shielded Power Inductor
- Series：-
- Mfr：Central Technologies
- Package：Bulk
- Type：-
- Material - Core：-
- Inductance：6.8 µH
- Tolerance：±20%
- Current Rating (Amps)：14 A
- Current - Saturation (Isat)：-
- Shielding：Shielded
- DC Resistance (DCR)：22mOhm
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-55°C ~ 125°C
- Inductance Frequency - Test：-
- Mounting Type：Surface Mount
- Package / Case：-
- Supplier Device Package：-
- Size / Dimension：0.543" L x 0.496" W (13.80mm x 12.60mm)
- Height - Seated (Max)：0.197" (5.00mm)
- Features：-
Fixed Inductors datasheet and documents for CTMMP5020F-6R8M
Fixed Inductors Overview
The CTMMP5020F-6R8M is a shielded power inductor manufactured by Central Technologies. It features a nominal inductance of 6.8 µH with a tolerance of ±20%. The component supports a maximum current rating of 14 A and exhibits a maximum DC resistance of 22 mΩ. Designed for surface-mount technology, it utilizes a molded construction suitable for high-current applications.
Fixed Inductors Feature Summary
- Shielded magnetic design to minimize electromagnetic interference
- High current handling capability for power supply circuits
- Low DC resistance for improved efficiency
- Surface-mount package for automated assembly
Fixed Inductors Applications
- DC-DC converter output filtering
- Power supply input stages
- General purpose power inductor applications
Fixed Inductors Procurement Notes
Verify the specific manufacturer datasheet for thermal derating curves and saturation current limits under varying ambient temperatures. Confirm RoHS compliance status and lead-free finish specifications directly with the supplier or authorized distributor prior to finalizing procurement orders.
Fixed Inductors Selection Notes
Select this component when a shielded inductor with high current capacity is required. Ensure the operating current remains within the rated limits to prevent saturation. Verify that the PCB footprint matches the specified surface-mount dimensions for proper mechanical fit and solder joint integrity.
Fixed Inductors Part Context
This part belongs to the CTMMP series of fixed inductors from Central Technologies. The series offers various inductance values and current ratings. The CTMMP5020F-6R8M specifically targets applications requiring robust shielding and high current performance in a compact surface-mount form factor.
Fixed Inductors Replacement Considerations
Cross-reference with other shielded power inductors offering similar 6.8 µH inductance and comparable current ratings. Ensure replacement parts match the physical footprint and electrical characteristics such as DC resistance and saturation current.
