CTMMP5026F-100M

$1.41

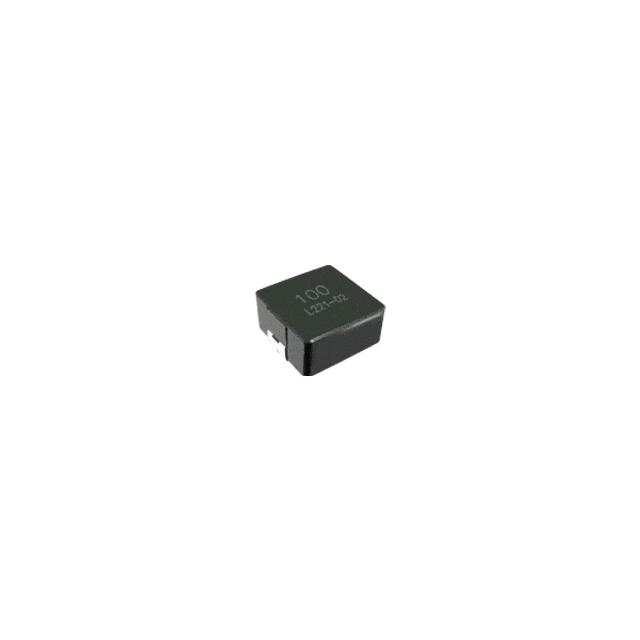

Description：SMD Shielded Power Inductor
Series：-
Mfr：Central Technologies
Package：Bulk

SKU:2d359b205cb3 Category: Fixed Inductors Brand: Central Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CTMMP5026F-100M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is SMD Shielded Power Inductor. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for CTMMP5026F-100M

Description：SMD Shielded Power Inductor
Series：-
Mfr：Central Technologies
Package：Bulk
Type：-
Material - Core：-
Inductance：10 µH
Tolerance：±20%
Current Rating (Amps)：15.5 A
Current - Saturation (Isat)：-
Shielding：Shielded
DC Resistance (DCR)：18.5mOhm
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：-
Mounting Type：Surface Mount
Package / Case：-
Supplier Device Package：-
Size / Dimension：0.543" L x 0.508" W (13.80mm x 12.90mm)
Height - Seated (Max)：0.264" (6.70mm)
Features：-

Fixed Inductors datasheet and documents for CTMMP5026F-100M

CTMMP5026F-100M

Fixed Inductors Overview

The CTMMP5026F-100M is a shielded power inductor from Central Technologies, designed for surface-mount applications. It features a fixed inductance of 10 µH with a tolerance of ±20%. The component has a maximum DC resistance of 18.5 mΩ and supports a typical RMS current of 15.5 A. It operates within a temperature range of -55°C to +125°C.

Fixed Inductors Feature Summary

Shielded metal mold construction
Surface-mount design
High current handling capability

Fixed Inductors Applications

Power supply circuits
DC-DC converters
General purpose inductors

Fixed Inductors Procurement Notes

Verify the specific part number against official datasheets to confirm electrical parameters such as inductance value, tolerance, and current ratings. Ensure compatibility with surface-mount assembly processes and operating temperature requirements before procurement.

Fixed Inductors Selection Notes

Select this component based on required inductance, current capacity, and physical footprint constraints. Consider thermal performance and shielding effectiveness for noise reduction in high-current applications.

Fixed Inductors Part Context

This component belongs to the CTMMP5026F series of shielded power inductors manufactured by Central Technologies. The series offers various inductance values tailored for power electronics applications requiring robust performance and compact sizing.

Fixed Inductors Replacement Considerations

Consult official substitution lists or equivalent specifications from other manufacturers if direct replacement is needed. Verify pinout, dimensions, and electrical characteristics match the original requirements.
