CTMPC080604F-2R2M

Fixed Inductors Overview

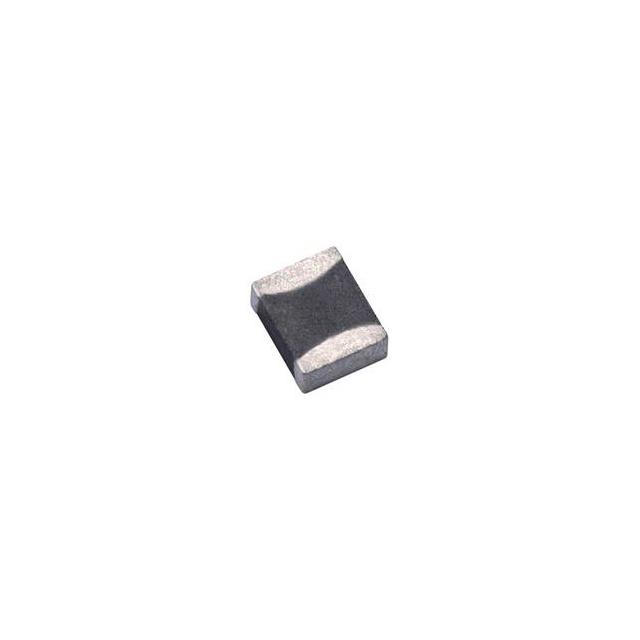

The CTMPC080604F-2R2M is a shielded general-purpose power inductor from Central Technologies, designed for surface-mount applications. It features a nominal inductance of 2.2 µH with a tolerance code 'M' indicating ±20%. The component operates at a test frequency of 200 kHz and has a maximum DC resistance of 4.2 mΩ. It supports an RMS current rating of 20.0 A and a saturation current of 13.5 A. The device measures 2.00 mm x 1.60 mm (0806 package) and complies with RoHS standards.

Fixed Inductors Feature Summary

• Shielded construction to minimize electromagnetic interference
• High current handling capability for power supply circuits
• Surface-mount design for automated assembly

Fixed Inductors Applications

• DC-DC converter output filtering
• Power supply input stages
• General-purpose power electronics

Fixed Inductors Procurement Notes

Verify the specific tolerance suffix when ordering, as the base series requires explicit specification. Confirm RoHS compliance status for environmental regulations. Ensure the application temperature range aligns with the component's rated operating limits. Cross-reference the DCR and current ratings against system requirements to prevent thermal issues during operation.

Fixed Inductors Selection Notes

Select this component for applications requiring high current density in a compact footprint. The 2.2 µH value suits low-inductance power filtering needs. Consider the 20.0 A RMS rating for heavy-load scenarios. The shielded type reduces noise coupling compared to unshielded alternatives. Verify that the 200 kHz test frequency matches the switching frequency of the target circuit.

Fixed Inductors Part Context

This part belongs to the CTMPC080604F series of shielded power inductors. The series offers various inductance values within the 0806 package size. Central Technologies provides this line for robust power management solutions. The series is characterized by low DC resistance and high saturation currents suitable for modern compact electronic devices.

Fixed Inductors Replacement Considerations

Direct substitutes include other CTMPC080604F variants with different inductance values if the electrical parameters differ. Check for equivalent shielded power inductors from other manufacturers with matching 2.2 µH, 20.0 A, and 0806 dimensions. Ensure the replacement maintains the same shielding type and mounting style.
