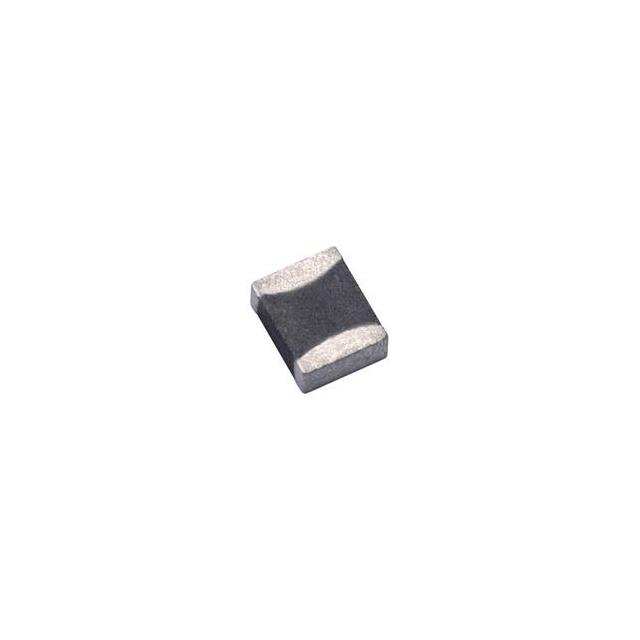

CTMPC080605F-R68M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is 0.68UH SMD SHLDED POWER INDUCTOR. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CTMPC080605F-R68M
- Description：0.68UH SMD SHLDED POWER INDUCTOR
- Series：CTMPC080605F
- Mfr：Central Technologies
- Package：Tape & Reel (TR)
- Type：Molded
- Material - Core：-
- Inductance：680 nH
- Tolerance：±20%
- Current Rating (Amps)：2.6 A
- Current - Saturation (Isat)：3.3A
- Shielding：Shielded
- DC Resistance (DCR)：70mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-40°C ~ 125°C
- Inductance Frequency - Test：2 MHz
- Mounting Type：Surface Mount
- Package / Case：0806 (2016 Metric)
- Supplier Device Package：806
- Size / Dimension：0.079" L x 0.063" W (2.00mm x 1.60mm)
- Height - Seated (Max)：0.047" (1.20mm)
- Features：-
Fixed Inductors datasheet and documents for CTMPC080605F-R68M
Fixed Inductors Overview
The CTMPC080605F-R68M is a shielded molded power inductor from Central Technologies, designed for surface-mount applications. It features a nominal inductance of 680 nH with a maximum DC resistance of 70 mΩ and a rated current capacity of 2.6 A. The component utilizes an 0806 (2016 Metric) package footprint, ensuring compatibility with standard automated assembly processes while providing electromagnetic interference shielding.
Fixed Inductors Feature Summary
- Shielded construction to minimize electromagnetic interference
- Molded design for mechanical stability
- Surface-mount technology compatible
Fixed Inductors Applications
- Power supply filtering
- DC-DC converter circuits
- Signal processing stages
Fixed Inductors Procurement Notes
Verify the specific manufacturer datasheet for precise thermal derating curves and soldering profile recommendations. Confirm that the 2.6 A rating aligns with your system's peak current requirements under all operating conditions. Ensure the 0806 footprint matches your PCB layout constraints before finalizing procurement.
Fixed Inductors Selection Notes
Select this component when a compact, shielded solution is required for low-inductance power applications. The 680 nH value suits high-frequency switching environments where minimal energy storage is needed. Consider the 70 mΩ DCR for efficiency calculations and verify that the 2.6 A current rating exceeds your circuit's maximum load current.
Fixed Inductors Part Context
This part belongs to Central Technologies' fixed inductor portfolio, specifically within their shielded molded series. These components are engineered for general-purpose power electronics, offering a balance between size reduction and performance reliability compared to unshielded alternatives.
Fixed Inductors Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout and electrical specifications against any potential cross-reference parts before implementation.
