CTMPC100804F-R68M

Fixed Inductors Overview

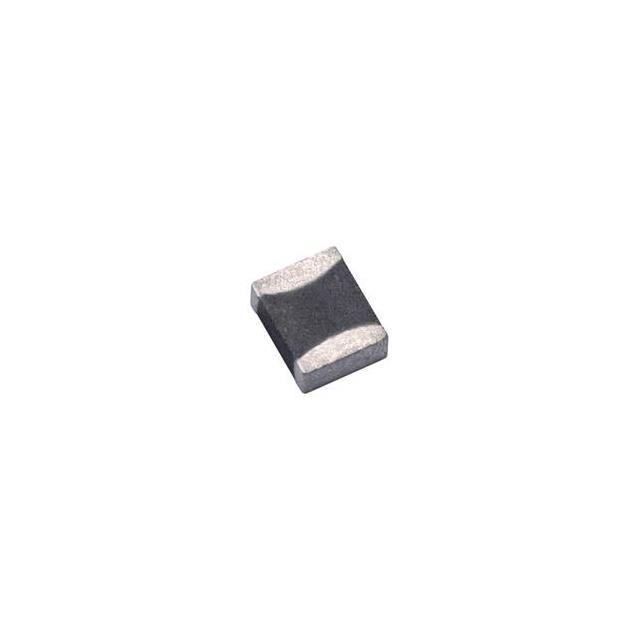

The CTMPC100804F-R68M is a fixed surface-mount inductor from Central Technologies, designed for general-purpose applications. It features a nominal inductance of 680 nH (0.68 µH) with a tolerance of ±20%. The component utilizes a shielded molded construction to minimize electromagnetic interference. It supports a maximum rated current of 2.9 A and exhibits a maximum DC resistance of 65 mΩ. The device is housed in a compact 1008 (2520 Metric) package, suitable for automated assembly processes.

Fixed Inductors Feature Summary

• Shielded molded construction reduces magnetic field leakage
• High current handling capability up to 2.9 A
• Low DC resistance for efficient power delivery
• Surface-mount design facilitates automated PCB assembly

Fixed Inductors Applications

• General-purpose signal filtering
• Power supply input/output stages
• RF circuit impedance matching
• Common mode noise suppression

Fixed Inductors Procurement Notes

Verify the specific ordering suffix to confirm RoHS compliance status, as manufacturing variations may exist across different production batches. Ensure the selected variant matches the required inductance tolerance and current rating for the target application. Cross-reference the manufacturer's official documentation to validate the exact electrical parameters before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when space constraints require a small 1008 footprint combined with high current capacity. The shielded design is critical for applications sensitive to electromagnetic interference. Evaluate the thermal performance at the maximum rated current to ensure reliability under continuous load conditions within the specified operating temperature range.

Fixed Inductors Part Context

This part belongs to the CTMPC series of fixed inductors manufactured by Central Technologies. The series offers various inductance values and current ratings in standardized surface-mount packages. The 'F' suffix typically denotes RoHS compliance, while the numeric code indicates the case size and inductance value.

Fixed Inductors Replacement Considerations

Direct substitutes must match the 680 nH inductance, 2.9 A current rating, and 1008 package dimensions. Verify that alternative components offer comparable shielding effectiveness and DC resistance to maintain circuit performance integrity.
