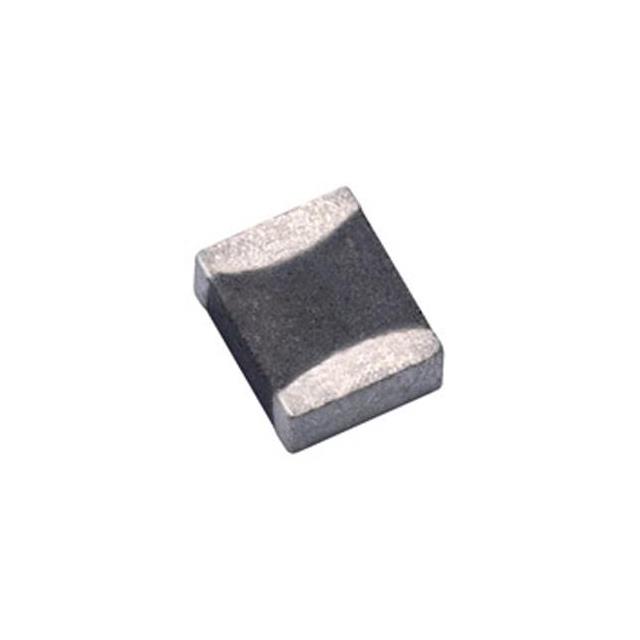

CTMPC121004PF-1R0M

$1.25

Description：1.0UH SMD SHLDED POWER INDUCTOR
Series：CTMPC121004PF
Mfr：Central Technologies
Package：Bulk

SKU:a0801ccf567d Category: Fixed Inductors Brand: Central Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CTMPC121004PF-1R0M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is 1.0UH SMD SHLDED POWER INDUCTOR. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for CTMPC121004PF-1R0M

Description：1.0UH SMD SHLDED POWER INDUCTOR
Series：CTMPC121004PF
Mfr：Central Technologies
Package：Bulk
Type：-
Material - Core：-
Inductance：1 µH
Tolerance：±20%
Current Rating (Amps)：3:00 AM
Current - Saturation (Isat)：4A
Shielding：Shielded
DC Resistance (DCR)：56mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：2 MHz
Mounting Type：Surface Mount
Package / Case：1210 (3225 Metric)
Supplier Device Package：1210
Size / Dimension：0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)：0.039" (1.00mm)
Features：-

Fixed Inductors datasheet and documents for CTMPC121004PF-1R0M

CTMPC121004PF-1R0M

Fixed Inductors Overview

The CTMPC121004PF-1R0M is a shielded surface-mount power inductor manufactured by Central Technologies. It features a nominal inductance of 1 µH and a maximum DC resistance of 56 mΩ. The component supports a current rating of 3 A and operates within a temperature range of -40°C to 125°C. Housed in a 1210 (3225 Metric) rectangular package measuring 3.2mm x 2.5mm x 1mm, it utilizes a dual-ended terminal configuration for PCB integration.

Fixed Inductors Feature Summary

Shielded magnetic design minimizes electromagnetic interference with surrounding circuitry.

Fixed Inductors Applications

General purpose power supply filtering
DC-DC converter input or output stages

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm exact electrical tolerances and packaging specifications. Confirm RoHS compliance status and lead times directly with authorized distributors prior to purchase. Ensure the selected variant matches the required inductance value and current handling capabilities for the target application environment.

Fixed Inductors Selection Notes

Select this component when a compact shielded inductor is required for high-current applications. The 1210 footprint offers a balance between size and thermal performance. Verify that the 3 A current rating and 1 µH inductance align with the specific circuit design requirements and operating temperature constraints.

Fixed Inductors Part Context

This part belongs to the CTMPC series of shielded power inductors from Central Technologies. The series provides various inductance values within the 1210 package format, designed for general-purpose power electronics applications requiring reliable magnetic shielding and stable performance under load.
