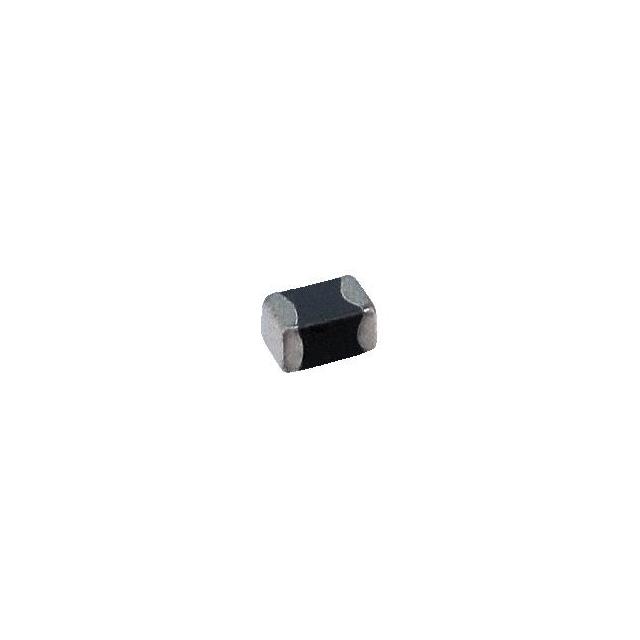

Fixed Inductors CTMPH080504F-R24M product image

CTMPH080504F-R24M

Description：0.24UH SMD MOLDED SHLD INDUCTOR
Series：CTMPH080504F
Mfr：Central Technologies
Package：Tape & Reel (TR)

SKU:7ee185afbd47 Category: Fixed Inductors Brand: Central Technologies

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CTMPH080504F-R24M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is 0.24UH SMD MOLDED SHLD INDUCTOR. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for CTMPH080504F-R24M

Description：0.24UH SMD MOLDED SHLD INDUCTOR
Series：CTMPH080504F
Mfr：Central Technologies
Package：Tape & Reel (TR)
Type：Molded
Material - Core：-
Inductance：240 nH
Tolerance：±20%
Current Rating (Amps)：3.7 A
Current - Saturation (Isat)：4.5A
Shielding：Shielded
DC Resistance (DCR)：28mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：2 MHz
Mounting Type：Surface Mount
Package / Case：0805 (2012 Metric)
Supplier Device Package：805
Size / Dimension：0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)：0.039" (1.00mm)
Features：-

Fixed Inductors datasheet and documents for CTMPH080504F-R24M

CTMPH080504F-R24M
