CTMPH100804F-1R5M

$0.71

Description：1.5UH SMD MOLDED SHLD INDUCTOR
Series：CTMPH100804F
Mfr：Central Technologies
Package：Tape & Reel (TR)

SKU:a26c728917d2 Category: Fixed Inductors Brand: Central Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CTMPH100804F-1R5M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is 1.5UH SMD MOLDED SHLD INDUCTOR. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for CTMPH100804F-1R5M

Description：1.5UH SMD MOLDED SHLD INDUCTOR
Series：CTMPH100804F
Mfr：Central Technologies
Package：Tape & Reel (TR)
Type：Molded
Material - Core：-
Inductance：1.5 µH
Tolerance：±20%
Current Rating (Amps)：2.4 A
Current - Saturation (Isat)：3.1A
Shielding：Shielded
DC Resistance (DCR)：75mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：2 MHz
Mounting Type：Surface Mount
Package / Case：1008 (2520 Metric)
Supplier Device Package：1008
Size / Dimension：0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)：0.039" (1.00mm)
Features：-

Fixed Inductors datasheet and documents for CTMPH100804F-1R5M

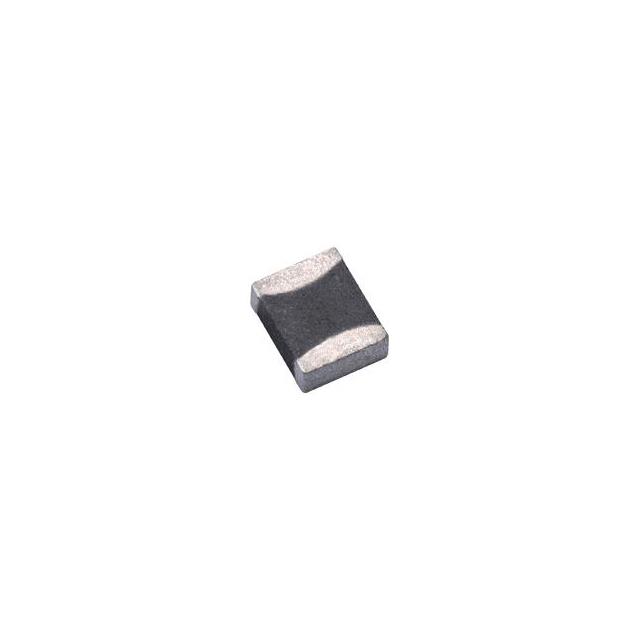

CTMPH100804F-1R5M

Fixed Inductors Overview

The CTMPH100804F-1R5M is a shielded molded inductor from Central Technologies with a nominal inductance of 1.5 µH and ±20% tolerance. It features a 1008 (2520 metric) package measuring 2.50mm x 2.00mm. The component has a maximum DC resistance of 105 mΩ and supports an operating temperature range from -40°C to 105°C.

Fixed Inductors Feature Summary

Magnetically shielded construction
Molded design for structural integrity

Fixed Inductors Applications

Smartphone
Tablet PC
Hard Disk for Ultrabook
DC/DC Converters
Portable Devices

Fixed Inductors Procurement Notes

Verify the specific part number against manufacturer documentation to confirm the 1008 package dimensions and electrical characteristics. Ensure compatibility with the target application's thermal requirements, specifically the 105°C maximum operating temperature limit. Confirm that the 1.5 µH inductance value meets the circuit design specifications before procurement.

Fixed Inductors Selection Notes

Select this component for applications requiring a compact, shielded solution in the 1008 footprint. The 1.5 µH value suits general power filtering needs. Consider the 105°C temperature rating for high-heat environments. Verify that the physical size fits within the available board space constraints for mobile or ultrabook form factors.

Fixed Inductors Part Context

This part belongs to the CTMPH100804F series of fixed inductors manufactured by Central Technologies. The series offers various inductance values within the same 1008 package outline. These components are designed for surface-mount assembly in consumer electronics and portable device applications.
