CTR1330F-101K

Fixed Inductors Overview

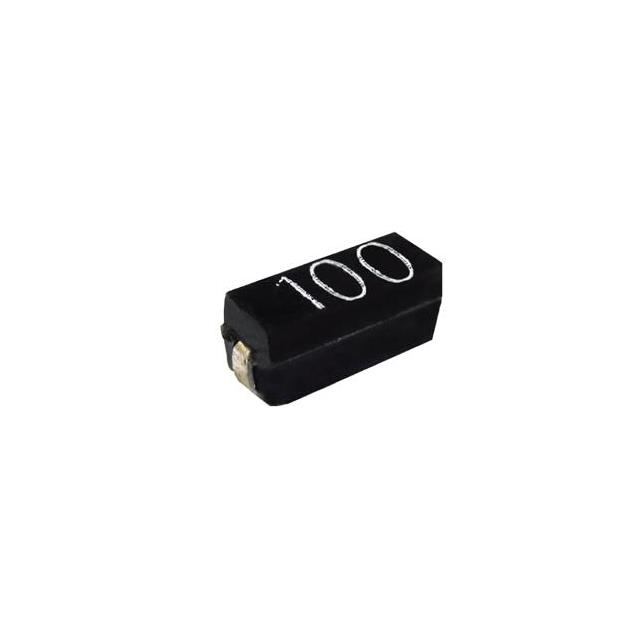

The CTR1330F-101K is a fixed inductor manufactured by Central Technologies. It features an unshielded molded construction with a J-Lead surface-mount package. The component provides an inductance of 100 µH and has a maximum DC resistance of 8 Ohms. It supports a current rating of 84 mA. The tolerance for this part is ±10%.

Fixed Inductors Feature Summary

• Unshielded molded design
• J-Lead surface-mount configuration

Fixed Inductors Applications

• Embedded communication systems
• Wireless gateway applications

Fixed Inductors Procurement Notes

Verify the specific manufacturer datasheet to confirm electrical parameters such as inductance, DC resistance, and current ratings. Ensure the J-Lead package dimensions match the target PCB footprint. Check for RoHS compliance status and lead-free requirements relevant to the assembly process.

Fixed Inductors Selection Notes

Select this component for applications requiring a 100 µH inductance value with a compact SMD form factor. Consider the 84 mA current limit and 8 Ohm DC resistance when designing power or signal paths. The unshielded nature may require layout considerations to manage electromagnetic interference.

Fixed Inductors Part Context

This part belongs to the CTR1330F series of fixed inductors from Central Technologies. These components are characterized by their molded construction and J-Lead termination style, distinguishing them from radial or standard gull-wing SMD inductors.

Fixed Inductors Replacement Considerations

Compatible substitutes include other 100 µH SMD inductors with similar current ratings and package dimensions. Verify that alternative parts maintain the required 8 Ohm DC resistance maximum and ±10% tolerance to ensure circuit performance consistency.
