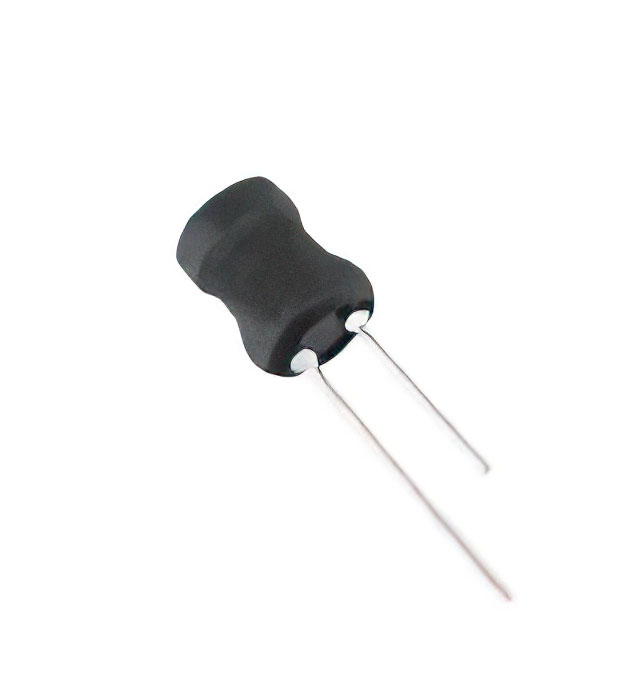

CTRL5480F-2-101K is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is 100UH RADIAL FIXED INDUCTOR. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CTRL5480F-2-101K
- Description：100UH RADIAL FIXED INDUCTOR
- Series：CTRL5480F-2
- Mfr：Central Technologies
- Package：Bulk
- Type：-
- Material - Core：-
- Inductance：100 µH
- Tolerance：±10%
- Current Rating (Amps)：490 mA
- Current - Saturation (Isat)：530mA
- Shielding：Unshielded
- DC Resistance (DCR)：270mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-55°C ~ 125°C
- Inductance Frequency - Test：1 kHz
- Mounting Type：Through Hole
- Package / Case：Radial, Vertical Cylinder
- Supplier Device Package：Radial, Vertical Cylinder
- Size / Dimension：0.272" Dia (6.90mm)
- Height - Seated (Max)：0.366" (9.30mm)
- Features：-
Fixed Inductors datasheet and documents for CTRL5480F-2-101K
Fixed Inductors Overview
The CTRL5480F-2-101K is a fixed radial inductor manufactured by Central Technologies. It features an unshielded design with a vertical cylinder package and through-hole mounting. The component has an inductance of 100 µH, a maximum DC resistance of 270 mΩ, and a current rating of 490 mA. Saturation current is specified at 530 mA. It operates within a temperature range of -55°C to 125°C.
Fixed Inductors Feature Summary
- Unshielded construction for applications requiring non-magnetic interference
- Vertical cylinder radial lead configuration for standard PCB mounting
- Wide operating temperature range suitable for harsh environments
Fixed Inductors Applications
- General purpose filtering circuits
- Power supply input/output stages
- Signal processing choke applications
Fixed Inductors Procurement Notes
Verify the specific tolerance class and saturation current requirements against the official Central Technologies datasheet before ordering. Confirm that the 270 mΩ DCR limit meets the circuit's power loss constraints. Ensure the vertical radial footprint matches the target PCB layout dimensions.
Fixed Inductors Selection Notes
Select this component when a 100 µH unshielded inductor is required with moderate current handling capabilities. Consider the 490 mA continuous rating and 530 mA saturation limit to ensure stable operation under load. The wide temperature range supports reliable performance in industrial or automotive contexts.
Fixed Inductors Part Context
This part belongs to the CTRL5480F series of drum core inductors from Central Technologies. The series offers various inductance values ranging from 3.9 µH to 22,000 µH. The '2' suffix typically denotes specific physical or electrical characteristics within the radial cylinder form factor.
Fixed Inductors Replacement Considerations
Cross-reference with other 100 µH radial unshielded inductors from manufacturers like Bourns or Coilcraft if availability is an issue. Verify that substitute parts match the 270 mΩ DCR and 490 mA current ratings to maintain circuit performance.
