CTRL5480F-4-101K

Fixed Inductors Overview

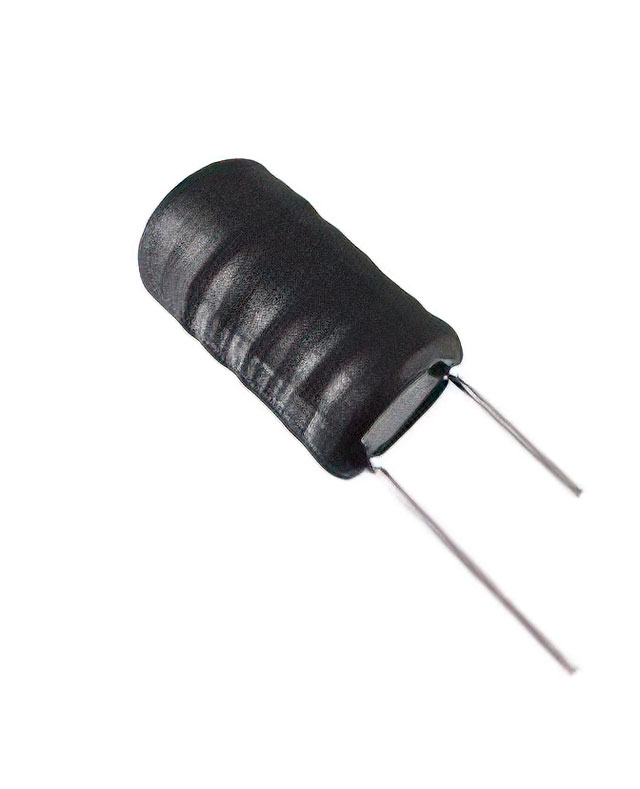

The CTRL5480F-4-101K is a fixed radial inductor manufactured by Central Technologies. It features an inductance of 100 µH with a tolerance of ±10%. The component has a maximum DC resistance of 108 mΩ and supports a rated current of 2 A. It utilizes an unshielded design suitable for vertical cylinder mounting.

Fixed Inductors Feature Summary

• Radial leaded construction for through-hole mounting
• Unshielded magnetic core configuration
• Vertical cylinder package style

Fixed Inductors Applications

• General purpose filtering circuits
• Power supply input stages
• Signal processing applications

Fixed Inductors Procurement Notes

Verify the specific suffix designation against official Central Technologies documentation to confirm electrical parameters. Ensure the procurement source provides valid datasheets matching the CTRL5480F series specifications. Cross-reference the manufacturer part number to avoid confusion with similar radial inductor variants.

Fixed Inductors Selection Notes

Select this component when a 100 µH inductance value is required with a high current handling capacity of 2 A. The low DC resistance minimizes power loss in series configurations. Consider the unshielded nature for layout planning regarding magnetic interference in dense assemblies.

Fixed Inductors Part Context

This part belongs to the CTRL5480F series of fixed inductors from Central Technologies. The series offers various inductance values ranging from microhenries to millihenries. The radial format allows for standard PCB integration without requiring specialized surface mount equipment.

Fixed Inductors Replacement Considerations

Consult official substitution lists for equivalent radial inductors with matching 100 µH inductance and 2 A current ratings. Verify that alternative components meet the same physical dimensions and pin spacing requirements for direct board replacement.
