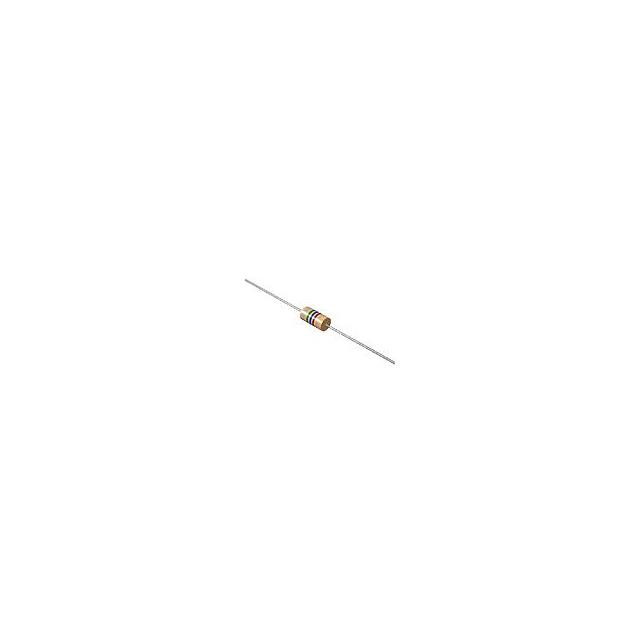

CTS1F-100K is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is 10UH AXL MOLDED SHLD INDUCTOR. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CTS1F-100K
- Description：10UH AXL MOLDED SHLD INDUCTOR
- Series：CTS1F
- Mfr：Central Technologies
- Package：Tape & Reel (TR)
- Type：Molded
- Material - Core：-
- Inductance：10 µH
- Tolerance：±10%
- Current Rating (Amps)：280 mA
- Current - Saturation (Isat)：-
- Shielding：Shielded
- DC Resistance (DCR)：2.3Ohm Max
- Q @ Freq：45 @ 7.9MHz
- Frequency - Self Resonant：53MHz
- Ratings：-
- Operating Temperature：-55°C ~ 105°C
- Inductance Frequency - Test：7.9 MHz
- Mounting Type：Through Hole
- Package / Case：Axial
- Supplier Device Package：Axial
- Size / Dimension：0.110" Dia x 0.260" L (2.80mm x 6.60mm)
- Height - Seated (Max)：-
- Features：-
Fixed Inductors datasheet and documents for CTS1F-100K
Fixed Inductors Overview
The CTS1F-100K is a fixed axial leaded molded inductor manufactured by Central Technologies. It features a shielded design with an inductance of 100 µH and a tolerance of ±10%. The component has a maximum DC resistance of 34 Ohms and a rated current of 72 mA. It operates within a temperature range of -55°C to +105°C.
Fixed Inductors Feature Summary
- Shielded axial leaded construction
- High reliability performance
- Wide operating temperature range
Fixed Inductors Applications
- RF applications
- High reliability electronic circuits
Fixed Inductors Procurement Notes
Verify the specific part number suffix against official Central Technologies documentation to confirm tolerance codes and availability. Ensure that the required inductance value, current rating, and physical dimensions align with the target circuit design specifications before finalizing procurement orders.
Fixed Inductors Selection Notes
Select this component for applications requiring shielded axial inductors with moderate inductance values. Consider the 72 mA current limit and 34 Ohm DC resistance when designing power supply or signal filtering stages. Verify thermal management requirements given the specified operating temperature range.
Fixed Inductors Part Context
This component belongs to the CTS1F series of shielded moldeds from Central Technologies. The series offers various inductance values and tolerances, providing options for different RF and general-purpose inductive needs while maintaining consistent axial packaging and shielding characteristics.
Fixed Inductors Replacement Considerations
Consult official manufacturer cross-reference lists for verified substitutes. Generic equivalents may differ in shielding effectiveness or current ratings.
