CTS2F-471J

Fixed Inductors Overview

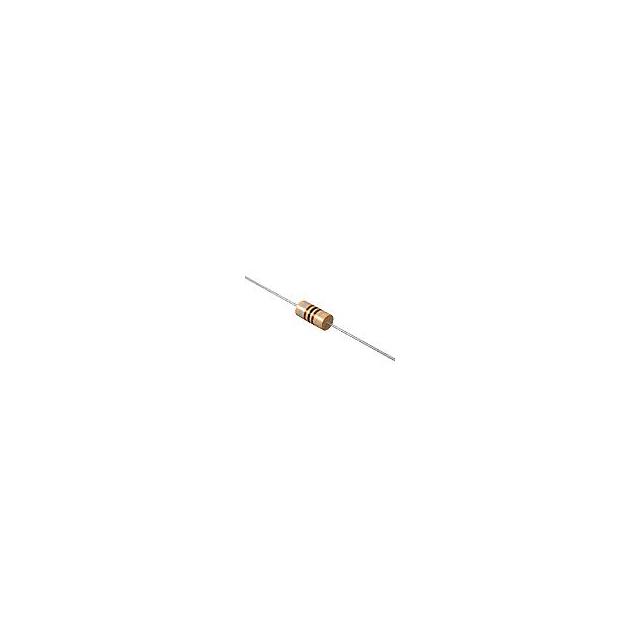

The Central Technologies CTS2F-471J is a fixed axial leaded inductor designed for general-purpose applications. It features a ferrite core and offers a nominal inductance of 470 µH with a tolerance of ±5%. The component has a maximum DC resistance of 11 Ω and a self-resonant frequency of 796 kHz. It supports an operating temperature range from -55°C to 125°C and is rated for a maximum current of 90 mA.

Fixed Inductors Feature Summary

• Axial leaded construction for through-hole mounting
• Ferrite core design for general-purpose use
• High thermal stability across extended temperature ranges

Fixed Inductors Applications

• General-purpose signal filtering
• Power supply input/output stages
• Electronic circuit protection

Fixed Inductors Procurement Notes

Verify the specific datasheet version for the CTS2F-471J to confirm exact electrical tolerances and physical dimensions. Ensure that the axial lead configuration matches the target PCB layout requirements. Cross-reference the manufacturer's official documentation to validate compliance with relevant environmental standards before finalizing procurement specifications.

Fixed Inductors Selection Notes

Select this component when axial mounting is required for robust mechanical stability in through-hole designs. Consider the 470 µH value and 90 mA current rating against circuit load requirements. Evaluate the 11 Ω DC resistance impact on voltage drop. Compare performance against surface-mount alternatives if space constraints are flexible.

Fixed Inductors Part Context

This part belongs to the CTC2F/CTS2F series of fixed inductors from Central Technologies. These components are characterized by their axial leaded format, distinguishing them from surface-mount chip inductors. The series provides reliable magnetic shielding and consistent performance for industrial and commercial electronic assemblies requiring durable passive components.

Fixed Inductors Replacement Considerations

The CTC2F-471J is a confirmed substitute part number within the same product family. Verify pin compatibility and mounting orientation when swapping between these axial variants.
