CTS46EIC45SS

Overview

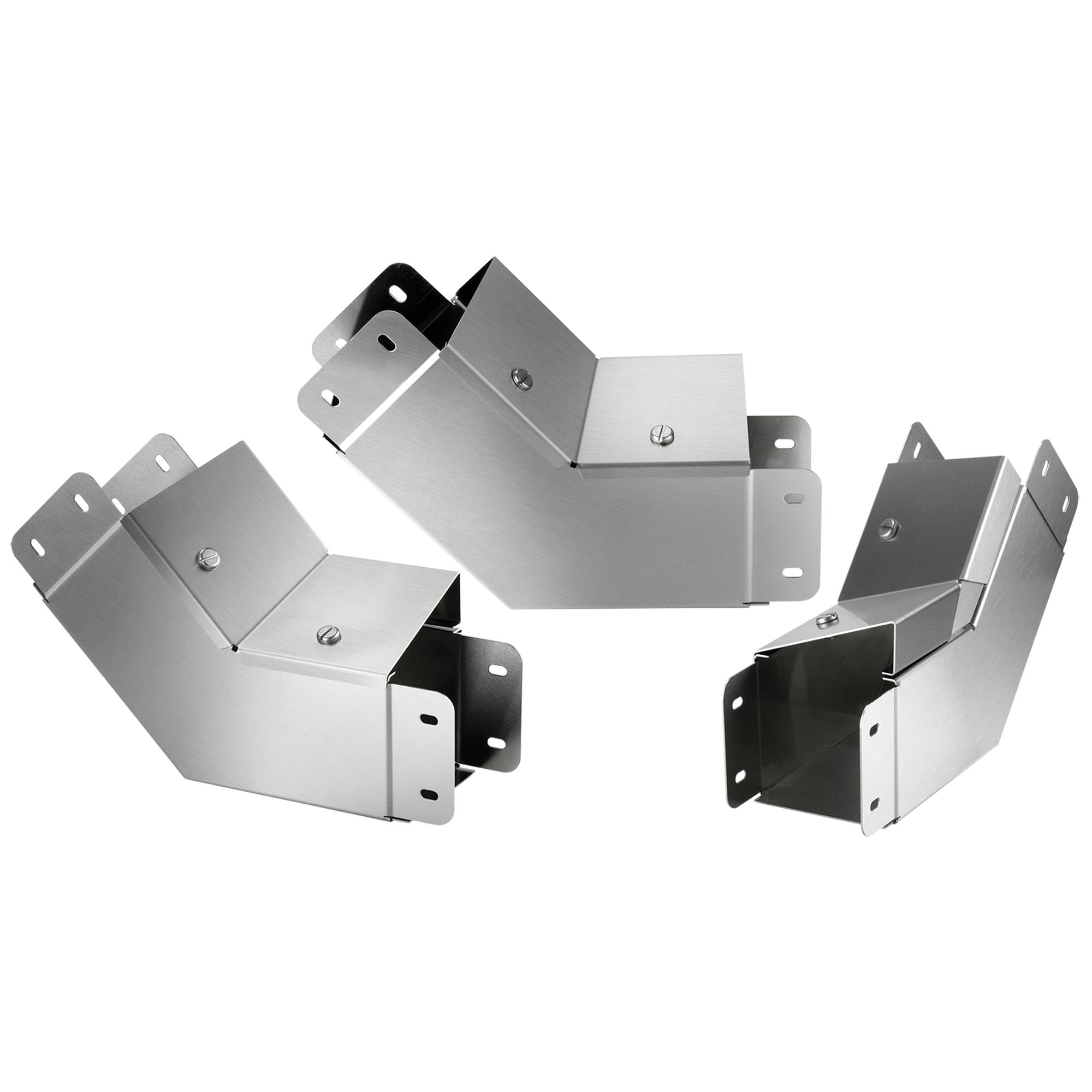

The CTS46EIC45SS is a 45-degree elbow inside cover for cable tray systems, manufactured by Hoffman Enclosures, Inc. Constructed from Type 304 stainless steel with a brushed #3 finish, it measures 4 inches in height and 6 inches in width. This component facilitates continuous cable runs through angled transitions within indoor environments.

Feature Summary

• Constructed from Type 304 stainless steel for corrosion resistance
• Designed as an inside cover for clean tray cable management systems
• Features a sloped geometry to accommodate 45-degree directional changes

Applications

• Indoor cable tray installations requiring 45-degree turns
• Continuous cable run management in industrial settings
• Protection of rated cabling during directional transitions

Procurement Notes

Verify the specific material grade (Type 304) and surface finish (brushed #3) against project specifications. Confirm compatibility with existing nVent Hoffman Clean Tray systems. Ensure the component meets indoor environmental requirements, as this part is not rated for outdoor or hazardous locations.

Selection Notes

Select this component when a 45-degree transition is required within a stainless steel cable tray system. It serves as a cover element rather than a structural support. Ensure the tray width matches the 6-inch dimension of this elbow cover for proper alignment and protection.

Part Context

This part belongs to the nVent Hoffman Clean Tray series, designed for organized cable management. It functions as a complementary accessory to straight sections and other fittings, maintaining system integrity and aesthetic continuity in electrical infrastructure projects.

Replacement Considerations

No public confirmed substitute part numbers are available. Verify dimensional compatibility if considering alternative manufacturers. Ensure any replacement maintains Type 304 stainless steel construction for equivalent corrosion resistance.
