CTSCH875DF-102K

Fixed Inductors Overview

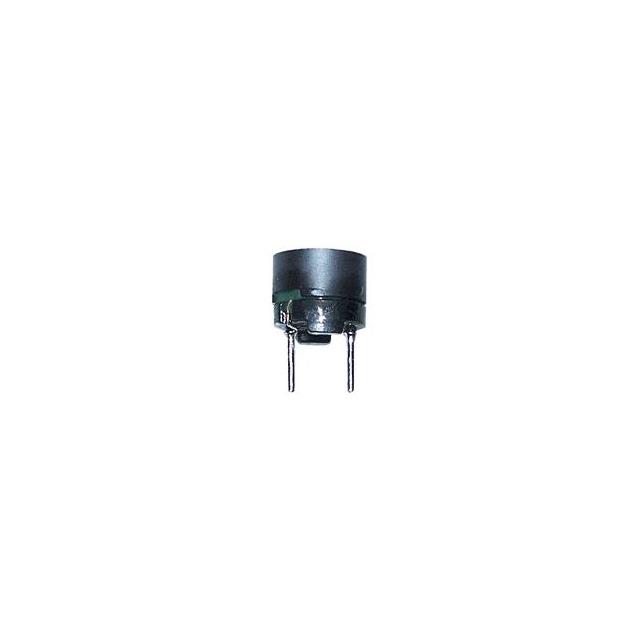

The CTSCH875DF-102K is a fixed general-purpose inductor manufactured by Central Technologies. It features a nominal inductance of 1000 µH with a tolerance of ±10%. The component has a maximum DC resistance of 2.72 Ω and a rated current of 0.23 A. It utilizes a cylindrical package with radial leads and includes shielding. The device is RoHS compliant, lead-free, and classified under EAR99.

Fixed Inductors Feature Summary

• Shielded construction for electromagnetic interference reduction
• Radial through-hole mounting configuration
• General-purpose design suitable for standard circuit applications

Fixed Inductors Applications

• DC-DC converter circuits
• General-purpose signal processing
• Power supply filtering

Fixed Inductors Procurement Notes

Verify the specific ordering suffix to confirm tolerance and packaging details. Ensure the procurement specification matches the required inductance value of 1000 µH and the maximum DC resistance limit of 2.72 Ω. Confirm that the radial lead type and shielded package are compatible with the target PCB layout and assembly process requirements.

Fixed Inductors Selection Notes

Select this component when a shielded radial inductor with 1 mH inductance is required for DC-DC conversion or general power applications. Consider the 0.23 A current rating and 2.72 Ω DC resistance limits during circuit design. Verify that the cylindrical package dimensions fit the available board space and that the through-hole mounting method aligns with the manufacturing capabilities.

Fixed Inductors Part Context

This part belongs to the CTSCH series of fixed inductors from Central Technologies. The series offers various inductance values with consistent shielding and radial lead configurations. The '102' designation indicates the specific 1000 µH value within this product line, distinguishing it from other variants with different electrical characteristics.

Fixed Inductors Replacement Considerations

Direct substitutes must match the 1000 µH inductance, ±10% tolerance, and radial shielded form factor. Verify equivalent DC resistance and current ratings to ensure circuit compatibility. Cross-reference with other Central Technologies radial inductor series if exact model availability is limited.
