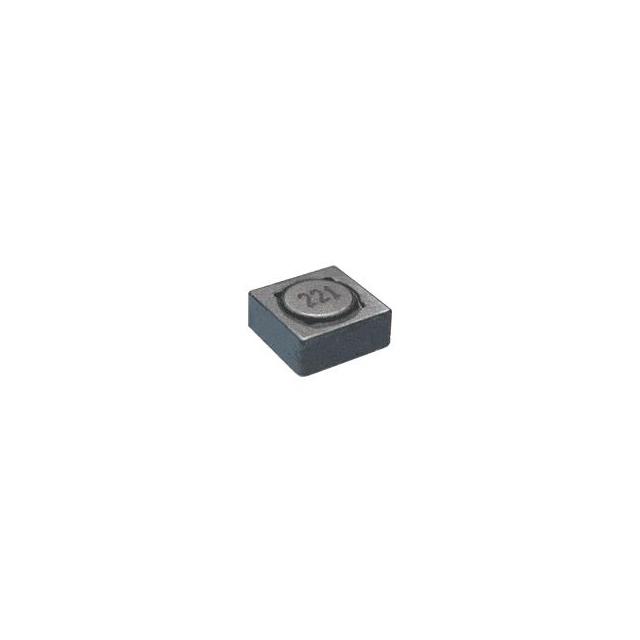

CTSD25F-2R2M

Description：2.2UH SMD SHLDED POWER INDUCTOR
Series：CTSD25F
Mfr：Central Technologies
Package：Tape & Reel (TR)

SKU:4c0f3f123ea0 Category: Fixed Inductors Brand: Central Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CTSD25F-2R2M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is 2.2UH SMD SHLDED POWER INDUCTOR. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for CTSD25F-2R2M

Description：2.2UH SMD SHLDED POWER INDUCTOR
Series：CTSD25F
Mfr：Central Technologies
Package：Tape & Reel (TR)
Type：-
Material - Core：-
Inductance：2.2 µH
Tolerance：±20%
Current Rating (Amps)：2.93 A
Current - Saturation (Isat)：2.8A
Shielding：Shielded
DC Resistance (DCR)：38.9mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-40°C ~ 85°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.217" L x 0.217" W (5.50mm x 5.50mm)
Height - Seated (Max)：0.110" (2.80mm)
Features：-

Fixed Inductors datasheet and documents for CTSD25F-2R2M

CTSD25F-2R2M

Fixed Inductors Overview

The CTSD25F-2R2M is a shielded surface-mount power inductor from Central Technologies. It features a nominal inductance of 2.2 µH with a ±20% tolerance. The component has a maximum DC resistance of 38.9 mΩ and is tested at a frequency of 100 kHz. It operates within a temperature range of -40°C to +85°C.

Fixed Inductors Feature Summary

Shielded wirewound construction for reduced electromagnetic interference
Surface mount mounting type for automated assembly
Dual inline terminal configuration

Fixed Inductors Applications

Power supply filtering
DC-DC converter circuits
General purpose inductive applications

Fixed Inductors Procurement Notes

Verify the specific manufacturer part number against official Central Technologies documentation to confirm electrical characteristics and physical dimensions. Ensure that the required operating temperature range and current ratings align with the design specifications before procurement.

Fixed Inductors Selection Notes

Select this component for applications requiring a compact, shielded inductor with low DC resistance. The 2.2 µH value and surface mount package are suitable for space-constrained power management designs. Confirm compatibility with soldering profiles and thermal requirements.

Fixed Inductors Part Context

This part belongs to the CTSD25F series of shielded power inductors manufactured by Central Technologies. The series offers various inductance values tailored for different power conversion needs while maintaining consistent physical footprint and shielding characteristics.
