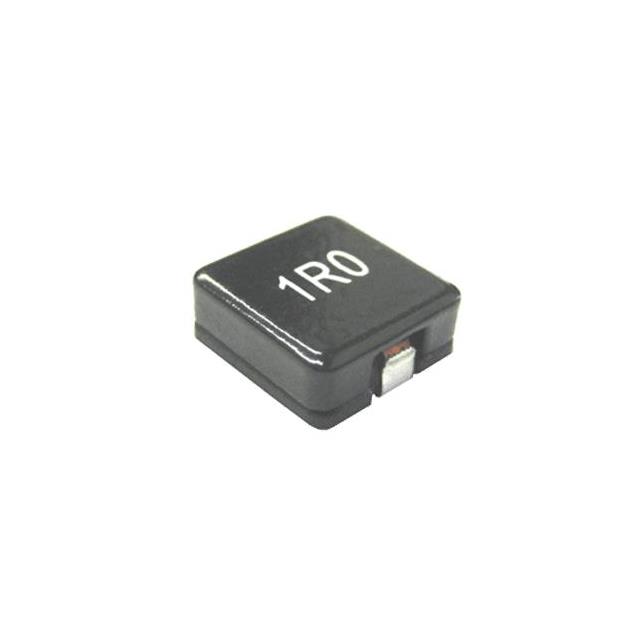

CTSFW1040F-2R8M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is SMD FLAT WIRE POWER INDUCTOR. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CTSFW1040F-2R8M
- Description：SMD FLAT WIRE POWER INDUCTOR
- Series：CTSFW1040F
- Mfr：Central Technologies
- Package：Tape & Reel (TR)
- Type：Wirewound
- Material - Core：-
- Inductance：2.8 µH
- Tolerance：±20%
- Current Rating (Amps)：9.5 A
- Current - Saturation (Isat)：11A
- Shielding：Shielded
- DC Resistance (DCR)：11.7mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-55°C ~ 150°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.413" L x 0.402" W (10.50mm x 10.20mm)
- Height - Seated (Max)：0.173" (4.40mm)
- Features：-
Fixed Inductors datasheet and documents for CTSFW1040F-2R8M
Fixed Inductors Overview
The CTSFW1040F-2R8M is a shielded surface-mount power inductor from Central Technologies, featuring a rectangular package and dual-ended terminals. It has a nominal inductance of 2.8 µH with a 20% tolerance and operates within a temperature range of -40 °C to 85 °C. The component is RoHS compliant and lead-free, designed for general-purpose applications.
Fixed Inductors Feature Summary
- Shielded construction minimizes electromagnetic interference
- Surface-mount design facilitates automated assembly
- Dual-ended terminal configuration for standard mounting
Fixed Inductors Applications
- Power supply circuits
- General-purpose filtering
- DC-DC converter stages
Fixed Inductors Procurement Notes
Verify the specific part number against official Central Technologies documentation to confirm electrical parameters and physical dimensions. Ensure compliance with current environmental regulations such as RoHS standards before integration into final products.
Fixed Inductors Selection Notes
Select this component based on its 2.8 µH inductance requirement and surface-mount form factor. Consider the operating temperature range and shielding needs when evaluating suitability for the target electronic application environment.
Fixed Inductors Part Context
This component belongs to the CTSFW series of shielded power inductors manufactured by Central Technologies. The series offers various inductance values tailored for surface-mount technology applications requiring compact magnetic shielding solutions.
Fixed Inductors Replacement Considerations
Consult official manufacturer substitution lists for verified equivalents. Cross-reference inductance, tolerance, and physical footprint dimensions to ensure compatibility without modifying the existing circuit layout.
