CTSFW1335F-2R2M

$8.57

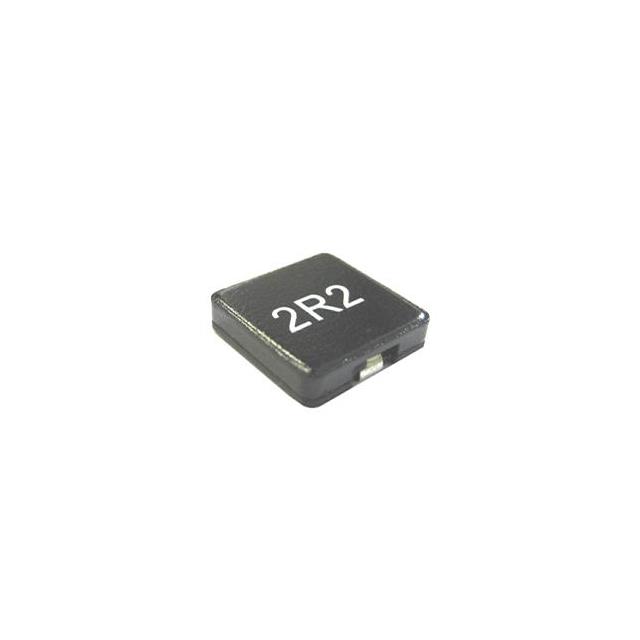

Description：SMD FLAT WIRE POWER INDUCTOR
Series：CTSFW1335F
Mfr：Central Technologies
Package：Tape & Reel (TR)

SKU:021a55e5a6f1 Category: Fixed Inductors Brand: Central Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CTSFW1335F-2R2M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is SMD FLAT WIRE POWER INDUCTOR. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for CTSFW1335F-2R2M

Description：SMD FLAT WIRE POWER INDUCTOR
Series：CTSFW1335F
Mfr：Central Technologies
Package：Tape & Reel (TR)
Type：Wirewound
Material - Core：-
Inductance：2.2 µH
Tolerance：±20%
Current Rating (Amps)：14 A
Current - Saturation (Isat)：18A
Shielding：Shielded
DC Resistance (DCR)：6.3mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-55°C ~ 150°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.531" L x 0.504" W (13.50mm x 12.80mm)
Height - Seated (Max)：0.154" (3.90mm)
Features：-

Fixed Inductors datasheet and documents for CTSFW1335F-2R2M

CTSFW1335F-2R2M

Fixed Inductors Overview

The CTSFW1335F-2R2M is a surface-mount flat wire power inductor from Central Technologies, featuring a shielded design. It offers an inductance of 2.2 µH with a tolerance of ±20%. The component supports a rated current of 14 A and a saturation current of 18 A. Its low DC resistance is 6.3 mΩ. This inductor is RoHS compliant and lead-free, suitable for high-current applications requiring compact shielding.

Fixed Inductors Feature Summary

Shielded flat wire construction for reduced electromagnetic interference
High saturation current capability for stable performance under load
Surface mount package for automated assembly integration

Fixed Inductors Applications

Power supply modules
DC-DC converter circuits
Server and data center power distribution

Fixed Inductors Procurement Notes

Verify the specific suffix 'F' against the manufacturer's latest datasheet to confirm packaging and tape-and-reel specifications. Ensure the requested quantity aligns with standard reel sizes. Confirm RoHS compliance status through official documentation prior to final procurement approval.

Fixed Inductors Selection Notes

Select this component when high current handling and magnetic shielding are required in a small footprint. Compare the 18 A saturation current against peak load requirements. Evaluate the 6.3 mΩ DCR for thermal management efficiency in dense power stages.

Fixed Inductors Part Context

This part belongs to the CTSFW series of shielded power inductors. It utilizes flat wire technology to achieve lower profile and higher current density compared to traditional wound inductors. The series is designed for demanding power electronics environments.
