CTSFW7030F-1R5M

Fixed Inductors Overview

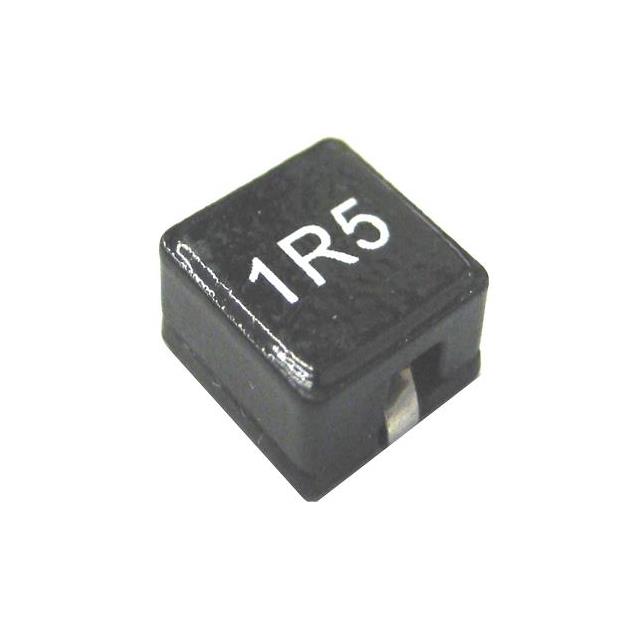

The CTSFW7030F-1R5M is a shielded flat wire power inductor from Central Technologies. It features an inductance of 1.5 µH and a maximum DC resistance of 15 mΩ. The component supports a saturation current of 12.7 A and a RMS current rating of 7.5 A. It operates within a temperature range of -40°C to 125°C and is designed for surface mount applications.

Fixed Inductors Feature Summary

• Shielded construction minimizes electromagnetic interference
• Flat wire winding technology enables high current handling
• Surface mount design facilitates automated assembly

Fixed Inductors Applications

• Power supply modules
• DC-DC converter circuits
• Embedded communication systems

Fixed Inductors Procurement Notes

Verify the manufacturer part number against official Central Technologies documentation to ensure authenticity. Confirm that the received components match the specified electrical parameters, including the 1.5 µH inductance and 7.5 A current ratings. Check for physical integrity and correct marking on the component body before integration into production lines.

Fixed Inductors Selection Notes

Select this component when designing circuits requiring high current density and low magnetic interference. The flat wire construction offers superior thermal performance compared to traditional wirewound options. Ensure the application voltage and frequency requirements align with the 100 kHz test frequency specification provided in the datasheet.

Fixed Inductors Part Context

This part belongs to the CTSFW7030F series of SMD flat wire high current power inductors. The series utilizes shielded designs to reduce noise coupling. Similar models in the family include variants with different inductance values such as CTSFW7030F-2R0M, maintaining consistent package dimensions and current capabilities.

Fixed Inductors Replacement Considerations

The Bourns SDR7030-1R5M serves as a potential substitute. Verify that the replacement matches the 1.5 µH inductance, 15 mΩ DCR, and 7.5 A current ratings. Confirm mechanical footprint compatibility and operating temperature range alignment before implementation.
