CTSFW7050F-1R1M

Fixed Inductors Overview

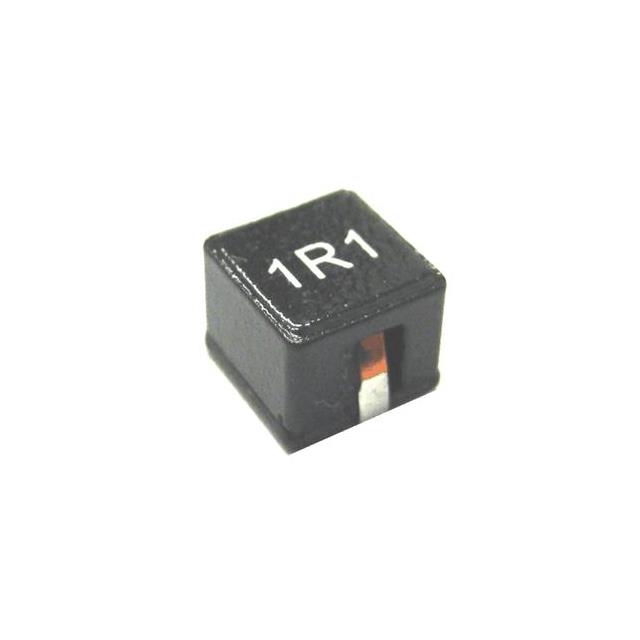

The CTSFW7050F-1R1M is a surface-mount shielded power inductor from Central Technologies. It features a flat wire construction and a fixed inductance of 1.1 µH. The component is tested at a frequency of 100 kHz. It is designed for high-current applications requiring low profile and efficient magnetic shielding.

Fixed Inductors Feature Summary

• Shielded design to minimize electromagnetic interference
• Flat wire winding for enhanced current handling
• Surface mount package for automated assembly

Fixed Inductors Applications

• DC-DC converter output filtering
• Point-of-load regulation stages
• Power supply input chokes

Fixed Inductors Procurement Notes

Verify the specific suffix '1R1M' confirms the 1.1 µH value during ordering. Ensure the surface mount footprint matches the PCB layout. Confirm the manufacturer is Central Technologies to avoid counterfeit components. Check datasheet for saturation current limits before finalizing the bill of materials.

Fixed Inductors Selection Notes

Select this part for applications requiring compact power inductors with high current capability. The shielded structure is suitable for noise-sensitive environments. Evaluate thermal performance under load conditions. Compare physical dimensions against available board space constraints.

Fixed Inductors Part Context

This component belongs to the CTSFW series of shielded power inductors. It utilizes flat wire technology for improved efficiency. The series offers various inductance values for different power management needs. It is distinct from open-wound or unshielded variants.

Fixed Inductors Replacement Considerations

Consult official substitution lists for compatible parts. Verify pinout compatibility and electrical parameters before swapping. Ensure mechanical dimensions fit the existing footprint.
