CTSPI2D10F-100M

Fixed Inductors Overview

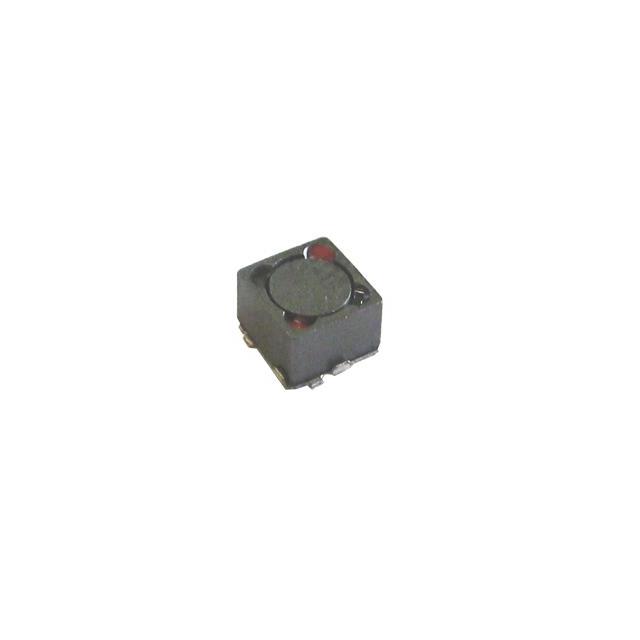

The CTSPI2D10F-100M is a shielded power inductor from Central Technologies with a nominal inductance of 10 µH and ±20% tolerance. It features a maximum DC resistance of 400 mΩ, a saturation current of 600 mA, and an RMS current rating of 600 mA. The component operates within a temperature range of -40°C to +85°C and utilizes a surface-mount package.

Fixed Inductors Feature Summary

• Shielded magnetic structure for reduced electromagnetic interference
• Low profile surface-mount design suitable for space-constrained applications
• High saturation and RMS current capabilities relative to physical size

Fixed Inductors Applications

• Cellular phones
• PDAs
• Digital cameras

Fixed Inductors Procurement Notes

Verify the specific part number suffix against official Central Technologies documentation to confirm electrical tolerances and packaging details. Ensure that the received components match the specified inductance value and current ratings required by the target circuit design before integration.

Fixed Inductors Selection Notes

Select this component when a compact, shielded inductor is required for low-power portable electronics. Consider the 600 mA current limit and 10 µH value against the specific voltage and frequency requirements of the power supply topology to ensure stable operation under load conditions.

Fixed Inductors Part Context

This component belongs to the CTSPI2D10F series of SMD shielded power inductors manufactured by Central Technologies. The series is designed for general-purpose power filtering in consumer electronics, offering a balance between performance and physical footprint for modern mobile devices.

Fixed Inductors Replacement Considerations

Cross-reference with other 10 µH shielded power inductors from Central Technologies or alternative manufacturers that meet the same 400 mΩ DCR and 600 mA current specifications while maintaining compatible package dimensions.
