CTSPMA3010F-2R2M

Fixed Inductors Overview

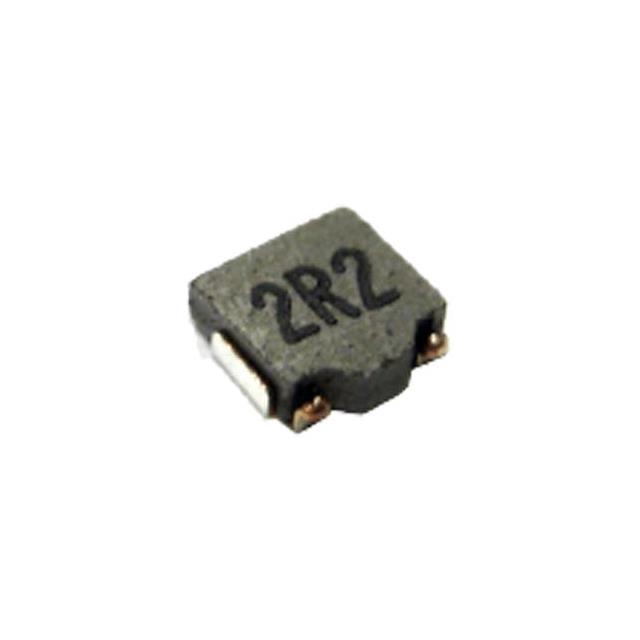

The CTSPMA3010F-2R2M is a shielded molded power inductor from Central Technologies, designed for surface-mount applications. It features an inductance of 2.2 µH with a tolerance of ±20%. The component supports a maximum current rating of 2 A and exhibits a maximum DC resistance (DCR) of 118 mΩ. Operating within a temperature range of -55°C to +155°C, it utilizes a nonstandard footprint measuring 3.4 × 3.1 × 1.0 mm. The device is lead-free and RoHS compliant, suitable for high-reliability electronic circuits requiring compact magnetic components.

Fixed Inductors Feature Summary

• Shielded construction minimizes electromagnetic interference
• High operating temperature capability up to 155°C
• Lead-free and RoHS compliant manufacturing

Fixed Inductors Applications

• Power supply filtering
• DC-DC converter circuits
• Signal processing systems

Fixed Inductors Procurement Notes

Verify the specific datasheet version against the manufacturer's official documentation to confirm electrical parameters and mechanical dimensions. Ensure that the ordering suffix matches the required packaging configuration. Cross-reference the part number with authorized distributors to validate authenticity and compliance status before procurement.

Fixed Inductors Selection Notes

Select this component when a shielded power inductor with a 2.2 µH value is required for space-constrained designs. Consider the 2 A current rating and 118 mΩ DCR for efficiency calculations. Verify that the nonstandard package dimensions fit the PCB layout constraints and that the thermal performance meets the application's operational requirements.

Fixed Inductors Part Context

This part belongs to the CTSPMA3010F series of shielded power inductors manufactured by Central Technologies. The series offers various inductance values tailored for surface-mount technology. The CTSPMA3010F-2R2M specifically addresses applications needing moderate inductance with robust shielding characteristics in a compact form factor.

Fixed Inductors Replacement Considerations

Consult the manufacturer's cross-reference guide for verified substitute part numbers. Ensure any replacement maintains equivalent inductance, current ratings, and physical dimensions to guarantee circuit compatibility without redesign.
