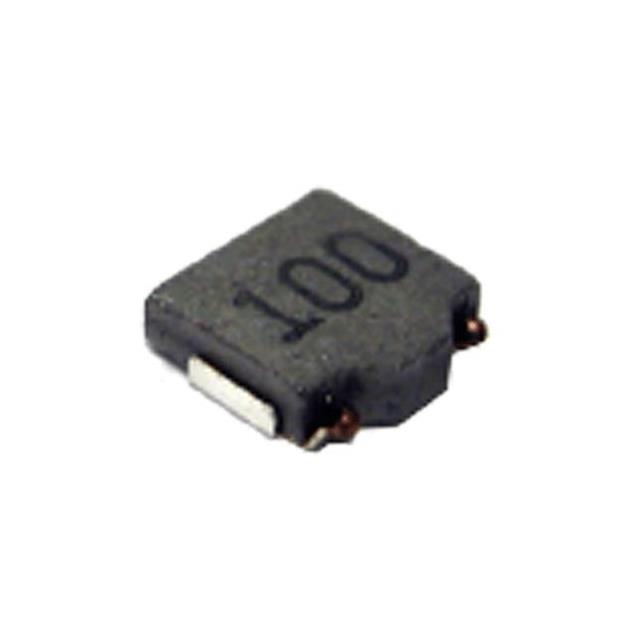

CTSPMA4010F-100M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is POWER INDUCTOR SMD SHIELDED 10UH. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CTSPMA4010F-100M
- Description：POWER INDUCTOR SMD SHIELDED 10UH
- Series：CTSPMA4010F
- Mfr：Central Technologies
- Package：Tape & Reel (TR)
- Type：-
- Material - Core：-
- Inductance：10 µH
- Tolerance：±20%
- Current Rating (Amps)：1.1 A
- Current - Saturation (Isat)：1.4A
- Shielding：Shielded
- DC Resistance (DCR)：350mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-55°C ~ 155°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.173" L x 0.173" W (4.40mm x 4.40mm)
- Height - Seated (Max)：0.039" (1.00mm)
- Features：-
Fixed Inductors datasheet and documents for CTSPMA4010F-100M
Fixed Inductors Overview
The CTSPMA4010F-100M is a shielded power inductor manufactured by Central Technologies. It features a nominal inductance of 10 µH with a tolerance of ±20%. The component has a maximum DC resistance of 350 mΩ and a rated current of 1.1 A. It utilizes a surface-mount technology (SMT) package with dimensions of 4.0 mm length, 4.0 mm width, and 1.0 mm height. The device operates within a temperature range of -40 °C to +85 °C and is RoHS compliant.
Fixed Inductors Feature Summary
- Shielded magnetic structure for reduced electromagnetic interference
- Surface-mount design suitable for automated assembly
- RoHS compliant construction
Fixed Inductors Applications
- Power supply circuits
- DC-DC converters
- General purpose filtering
Fixed Inductors Procurement Notes
Verify the specific ordering suffix matches the required inductance value and tolerance. Confirm that the surface-mount footprint aligns with the PCB layout requirements. Ensure the thermal environment supports the specified operating temperature range. Check for RoHS compliance documentation if required by project standards.
Fixed Inductors Selection Notes
Select this component based on the required 10 µH inductance and 1.1 A current rating. Consider the compact SMD package size for space-constrained designs. Evaluate the DC resistance impact on efficiency. Verify compatibility with the target switching frequency and application voltage levels.
Fixed Inductors Part Context
This part belongs to the CTSPMA series of shielded power inductors from Central Technologies. The series offers various inductance values and current ratings in standardized SMD packages. These components are designed for general power applications requiring compact size and reliable performance.
Fixed Inductors Replacement Considerations
Cross-reference with other shielded power inductors having similar 10 µH inductance, 1.1 A current rating, and compatible SMD footprint dimensions. Verify electrical parameters and thermal characteristics match before substitution.
