CTSPMA4012F-100M

Fixed Inductors Overview

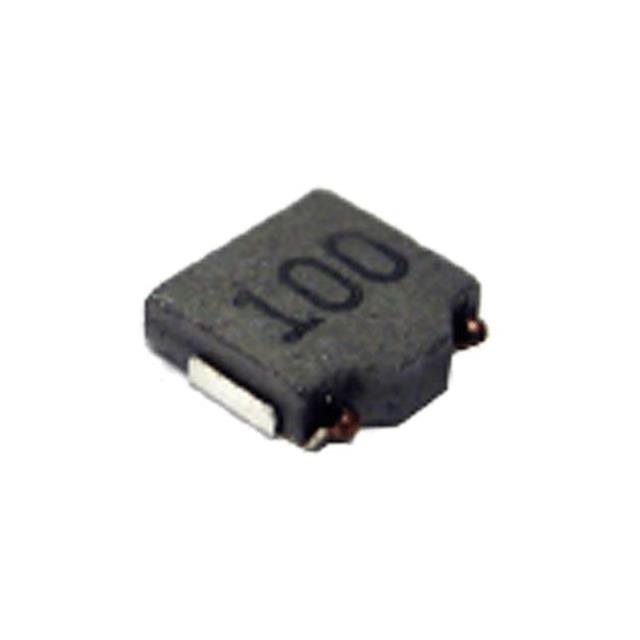

The CTSPMA4012F-100M is a shielded power inductor manufactured by Central Technologies. It features a nominal inductance of 10 µH with a tolerance of 20%. The component supports a maximum current rating of 1.5 A and exhibits a maximum DC resistance of 250 mΩ. Designed for surface mount technology, it operates within a temperature range of -55°C to 155°C. The unit utilizes a nonstandard package configuration suitable for compact electronic assemblies.

Fixed Inductors Feature Summary

• Shielded construction minimizes electromagnetic interference
• High operating temperature capability up to 155°C
• Surface mount design for automated assembly

Fixed Inductors Applications

• Power supply circuits
• DC-DC converter modules
• General purpose power filtering

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against official Central Technologies documentation to ensure correct specifications. Confirm RoHS compliance status and lead times directly with authorized distributors or the manufacturer prior to purchase. Ensure storage conditions align with component sensitivity requirements.

Fixed Inductors Selection Notes

Select this component for applications requiring a 10 µH inductance with high current handling capabilities. The shielded design is appropriate for noise-sensitive environments. Verify that the physical dimensions fit the available PCB space and that the thermal characteristics meet the system's operational demands.

Fixed Inductors Part Context

This part belongs to the fixed inductor category from Central Technologies. It is distinct from general-purpose ceramic-core inductors due to its shielded power inductor design. The model number indicates specific electrical and mechanical properties defined by the manufacturer's product line.

Fixed Inductors Replacement Considerations

Consult official datasheets for direct substitutes. Cross-reference parameters such as inductance, current rating, and DC resistance when evaluating alternative components. Ensure any replacement maintains compatibility with the original circuit requirements.
