CTSPMA4015F-4R7M

$0.94

Description：POWR INDUCTOR SMD SHIELDED 4.7UH
Series：CTSPMA4015F
Mfr：Central Technologies
Package：Tape & Reel (TR)

SKU:d9c1409e9405 Category: Fixed Inductors Brand: Central Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CTSPMA4015F-4R7M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is POWR INDUCTOR SMD SHIELDED 4.7UH. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for CTSPMA4015F-4R7M

Description：POWR INDUCTOR SMD SHIELDED 4.7UH
Series：CTSPMA4015F
Mfr：Central Technologies
Package：Tape & Reel (TR)
Type：-
Material - Core：-
Inductance：4.7 µH
Tolerance：±20%
Current Rating (Amps)：2.5 A
Current - Saturation (Isat)：3.5A
Shielding：Shielded
DC Resistance (DCR)：100mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-55°C ~ 155°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.173" L x 0.173" W (4.40mm x 4.40mm)
Height - Seated (Max)：0.059" (1.50mm)
Features：-

Fixed Inductors datasheet and documents for CTSPMA4015F-4R7M

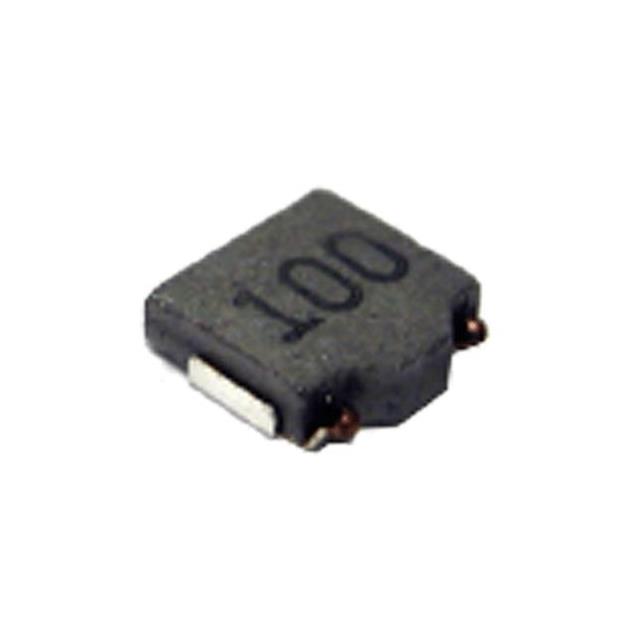

CTSPMA4015F-4R7M

Fixed Inductors Overview

The CTSPMA4015F-4R7M is a shielded surface-mount power inductor manufactured by Central Technologies. It features a nominal inductance of 4.7 µH with a tolerance of ±20%. The component has a maximum DC resistance of 100 mΩ and supports a rated current of 2.5 A. It operates within a temperature range of -55°C to +155°C.

Fixed Inductors Feature Summary

Shielded construction for reduced electromagnetic interference
Surface-mount design for automated assembly
High operating temperature capability up to 155°C

Fixed Inductors Applications

DC-DC converter circuits
Power supply filtering
General-purpose electronic equipment

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct packaging and specifications. Confirm that the requested part number matches the exact electrical parameters required for the design, as variations may exist within the series. Cross-reference the datasheet for any recent updates to mechanical dimensions or material composition.

Fixed Inductors Selection Notes

Select this component based on its 4.7 µH inductance value and 2.5 A current rating suitability for the target application. Ensure the nonstandard package dimensions fit the available PCB footprint. Consider the low DC resistance of 100 mΩ for efficiency requirements and verify thermal management capabilities given the high-temperature rating.

Fixed Inductors Part Context

This part belongs to the CTSPMA4015F series of shielded power inductors from Central Technologies. These components are designed for compact power electronics applications requiring reliable performance under varying thermal conditions. The series offers various inductance values tailored for different circuit requirements.
