CTSPMA5010F-1R5M

Fixed Inductors Overview

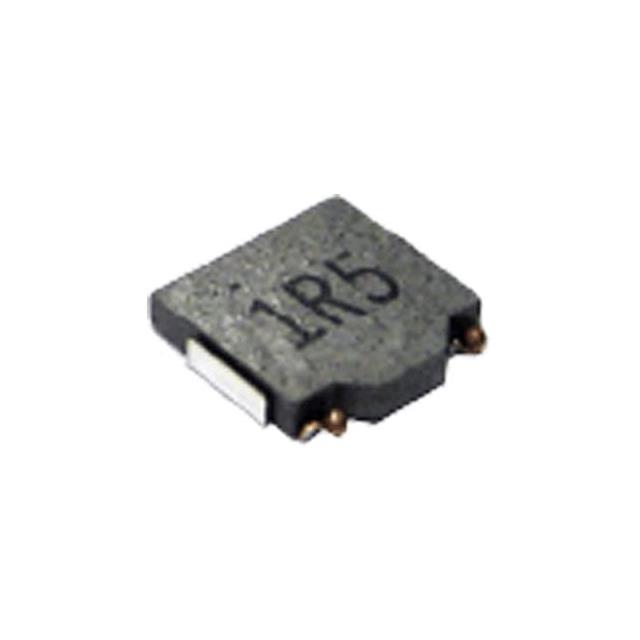

The CTSPMA5010F-1R5M is a shielded power inductor from the CTSPMA5010F series by Central Technologies. It features a surface-mount rectangular package with dimensions of 5.40mm x 5.40mm. The component has a nominal inductance of 1.5 µH with a tolerance of ±20%. It operates at a test frequency of 200 kHz and has a maximum DC resistance (DCR) of 3.3 mΩ. The part supports a typical RMS current (Irms) of 24.0 A and a saturation current (Isat) of 9.5 A.

Fixed Inductors Feature Summary

• Shielded magnetic structure designed to minimize electromagnetic interference
• High current handling capability suitable for power supply applications
• Surface-mount configuration for automated assembly processes

Fixed Inductors Applications

• Power supply circuits
• DC-DC converter modules
• General purpose inductor applications

Fixed Inductors Procurement Notes

Verify the specific suffix '1R5M' corresponds to the 1.5 µH inductance value and ±20% tolerance. Confirm the manufacturer is Central Technologies and the package size matches the 5.40mm x 5.40mm specification. Ensure the RoHS compliance status aligns with project requirements.

Fixed Inductors Selection Notes

Select this component when a compact, shielded power inductor with high current capacity is required. The 1.5 µH value and 24 A Irms rating make it suitable for low-inductance, high-current power stages. Consider the 5.40mm footprint for board space constraints.

Fixed Inductors Part Context

This part belongs to the CTSPMA5010F series of shielded power inductors. The series offers various inductance values ranging from 0.47 µH to 10 µH, all with ±20% tolerance. These components are designed for general-purpose power applications requiring robust current handling.

Fixed Inductors Replacement Considerations

Check the CTSPMA5010F-R15M or similar variants within the same series for direct functional equivalents. Verify that any substitute maintains the 5.40mm x 5.40mm package and comparable current ratings.
