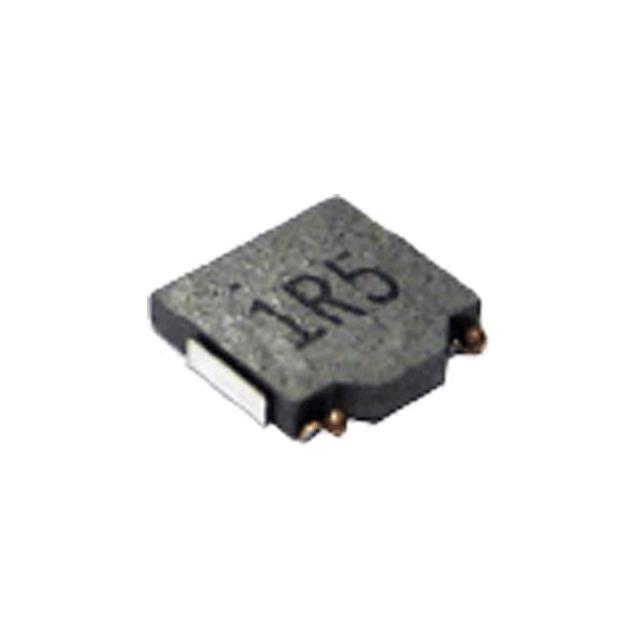

CTSPMA5012F-1R5M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is POWR INDUCTOR SMD SHIELDED 1.5UH. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CTSPMA5012F-1R5M
- Description：POWR INDUCTOR SMD SHIELDED 1.5UH
- Series：CTSPMA5012F
- Mfr：Central Technologies
- Package：Tape & Reel (TR)
- Type：-
- Material - Core：-
- Inductance：1.5 µH
- Tolerance：±20%
- Current Rating (Amps)：5.5 A
- Current - Saturation (Isat)：6.2A
- Shielding：Shielded
- DC Resistance (DCR)：29mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-55°C ~ 155°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.213" L x 0.213" W (5.40mm x 5.40mm)
- Height - Seated (Max)：0.047" (1.20mm)
- Features：-
Fixed Inductors datasheet and documents for CTSPMA5012F-1R5M
Fixed Inductors Overview
The CTSPMA5012F-1R5M is a shielded surface-mount power inductor manufactured by Central Technologies. It features a nominal inductance of 1.5 µH and utilizes a POWR INDUCTOR design suitable for compact electronic assemblies. The component is constructed for SMD mounting, providing electromagnetic shielding to minimize interference in high-density circuit layouts.
Fixed Inductors Feature Summary
- Shielded construction minimizes electromagnetic interference
- Surface mount design facilitates automated assembly
- Compact form factor optimized for space-constrained applications
Fixed Inductors Applications
- Power supply filtering circuits
- DC-DC converter energy storage
- General-purpose signal processing
Fixed Inductors Procurement Notes
Verify the specific manufacturer part number against official Central Technologies documentation to ensure accuracy. Confirm that the shielded SMD configuration aligns with the target PCB layout requirements. Cross-reference the 1.5 µH inductance value with circuit design specifications before finalizing procurement orders.
Fixed Inductors Selection Notes
Select this component when a shielded surface-mount inductor is required for power management applications. The 1.5 µH value suits moderate current handling needs within compact designs. Ensure the PCB footprint matches the SMD package dimensions specified in the official datasheet for proper mechanical integration.
Fixed Inductors Part Context
This component belongs to the POWR INDUCTOR series from Central Technologies, designed for surface-mount technology. It serves as a passive magnetic component within electronic circuits, offering reliable performance in power conversion and signal conditioning tasks where electromagnetic shielding is necessary.
