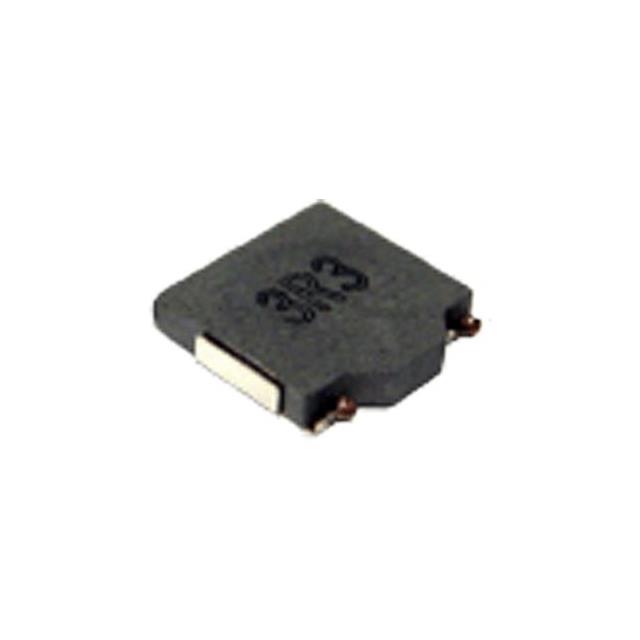

CTSPMA6010F-3R3M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is POWR INDUCTOR SMD SHIELDED 3.3UH. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CTSPMA6010F-3R3M
- Description：POWR INDUCTOR SMD SHIELDED 3.3UH
- Series：CTSPMA6010F
- Mfr：Central Technologies
- Package：Tape & Reel (TR)
- Type：-
- Material - Core：-
- Inductance：3.3 µH
- Tolerance：±20%
- Current Rating (Amps)：2.8 A
- Current - Saturation (Isat)：4.5A
- Shielding：Shielded
- DC Resistance (DCR)：99mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-55°C ~ 155°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.280" L x 0.280" W (7.10mm x 7.10mm)
- Height - Seated (Max)：0.039" (1.00mm)
- Features：-
Fixed Inductors datasheet and documents for CTSPMA6010F-3R3M
Fixed Inductors Overview
The CTSPMA6010F-3R3M is a shielded power inductor from Central Technologies, designed for surface-mount applications. It features a ferrite core and offers an inductance of 3.3 µH with a tolerance of ±20%. The component supports a rated current of 2.8 A and has a maximum DC resistance of 99 mΩ. It operates within a temperature range of -55°C to +155°C and utilizes a nonstandard package configuration.
Fixed Inductors Feature Summary
- Shielded construction minimizes electromagnetic interference
- High operating temperature capability up to 155°C
- Surface-mount design for automated assembly
Fixed Inductors Applications
- Power supply circuits
- General purpose inductive filtering
- DC-DC converter stages
Fixed Inductors Procurement Notes
Verify the specific manufacturer datasheet for the CTSPMA6010F series to confirm exact electrical tolerances and thermal characteristics. Ensure the nonstandard package dimensions align with the target PCB footprint requirements before finalizing procurement orders.
Fixed Inductors Selection Notes
Select this component when high-temperature stability and magnetic shielding are required in compact power electronics. The 3.3 µH value suits intermediate frequency filtering needs. Confirm that the 2.8 A current rating meets the peak load demands of the specific circuit application.
Fixed Inductors Part Context
This part belongs to the CTSPMA6010F series of fixed power inductors manufactured by Central Technologies. The series provides shielded options for various inductance values, catering to diverse power management requirements in modern electronic devices.
Fixed Inductors Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative components based on matching inductance, current ratings, and physical dimensions.
