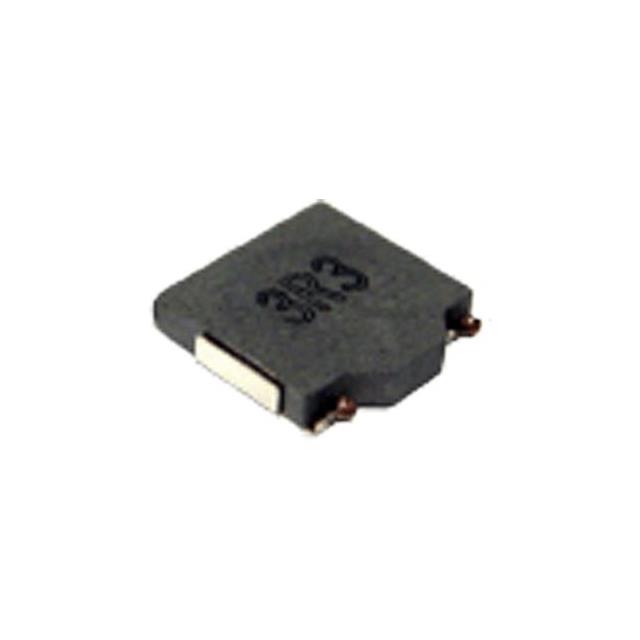

CTSPMA6012F-3R3M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is POWR INDUCTOR SMD SHIELDED 3.3UH. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CTSPMA6012F-3R3M
- Description：POWR INDUCTOR SMD SHIELDED 3.3UH
- Series：CTSPMA6012F
- Mfr：Central Technologies
- Package：Tape & Reel (TR)
- Type：-
- Material - Core：-
- Inductance：3.3 µH
- Tolerance：±20%
- Current Rating (Amps)：4.5 A
- Current - Saturation (Isat)：4.8A
- Shielding：Shielded
- DC Resistance (DCR)：50mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-55°C ~ 155°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.280" L x 0.280" W (7.10mm x 7.10mm)
- Height - Seated (Max)：0.047" (1.20mm)
- Features：-
Fixed Inductors datasheet and documents for CTSPMA6012F-3R3M
Fixed Inductors Overview
The CTSPMA6012F-3R3M is a shielded surface-mount power inductor from Central Technologies. It features a ferrite core and wire-wound construction with an inductance of 3.3 µH and a tolerance of ±20%. The component has a DC resistance (DCR) of 50 mΩ, a rated current of 4.8 A, and dimensions of 7.1 mm x 6.7 mm x 1.2 mm.
Fixed Inductors Feature Summary
- Shielded design to minimize electromagnetic interference
- Ferrite core construction for stable performance
- Surface-mount package for automated assembly
Fixed Inductors Applications
- Power supply filtering
- DC-DC converter circuits
- General purpose signal processing
Fixed Inductors Procurement Notes
Verify the specific manufacturer datasheet for the CTSPMA6012F-3R3M to confirm electrical parameters such as saturation current and thermal characteristics. Ensure the ordering suffix matches the required inductance value and tolerance. Cross-reference official documentation to validate compatibility with intended circuit requirements before procurement.
Fixed Inductors Selection Notes
Select this component based on its 3.3 µH inductance and 4.8 A current rating. Consider the 50 mΩ DCR for efficiency calculations. The shielded type is suitable for applications requiring reduced magnetic field emission. Verify that the 1.2 mm height fits within the mechanical constraints of the target PCB layout.
Fixed Inductors Part Context
This part belongs to the CTSPMA series of fixed power inductors manufactured by Central Technologies. The series offers various inductance values ranging from low microhenries to higher ranges, all utilizing shielded SMD packages designed for high-current applications in modern electronic devices.
Fixed Inductors Replacement Considerations
Public confirmed substitute part numbers are not available in the provided source material. Consult official distributor databases or manufacturer cross-reference tools for compatible alternatives with matching electrical specifications and footprint dimensions.
