CTSPMA6015F-6R8M

Fixed Inductors Overview

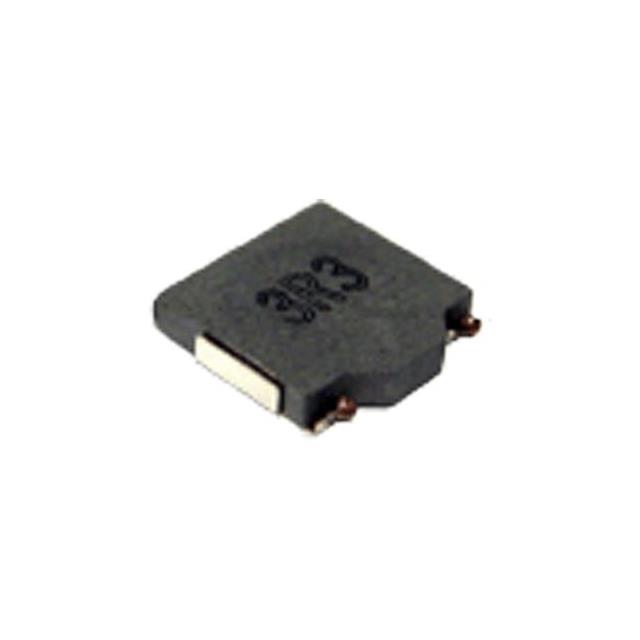

The CTSPMA6015F-6R8M is a shielded surface-mount power inductor manufactured by Central Technologies. It features a ferrite core and offers a nominal inductance of 6.8 µH with a tolerance of ±20%. The component has a maximum DC resistance (DCR) of 87 mΩ and a saturation current (Isat) rating of 4.6 A. Its physical dimensions are approximately 6.0 mm in length, 6.0 mm in width, and 1.5 mm in height. The device is designed for SMT assembly and operates within a temperature range suitable for general electronic applications.

Fixed Inductors Feature Summary

• Shielded construction to minimize electromagnetic interference
• Surface-mount design for automated PCB assembly
• Ferrite core material for stable inductance performance

Fixed Inductors Applications

• Power supply filtering circuits
• DC-DC converter input/output stages
• General-purpose RF inductor applications

Fixed Inductors Procurement Notes

Verify the specific ordering suffix matches the required inductance value and tolerance. Confirm that the package dimensions align with the designated footprint on the printed circuit board. Ensure the thermal management requirements of the application can accommodate the component's operating temperature limits. Cross-reference the manufacturer's latest datasheet for any updates to mechanical or electrical specifications before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when a compact, shielded power inductor is required for space-constrained designs. The 6.8 µH value suits moderate frequency switching applications. Consider the 4.6 A saturation current limit to ensure adequate headroom for peak load conditions. The low DCR helps reduce conduction losses in efficiency-sensitive power paths. Evaluate the SMD form factor against available board real estate and assembly capabilities.

Fixed Inductors Part Context

This part belongs to the CTSPMA series of shielded power inductors from Central Technologies. The series is characterized by its robust construction and suitability for high-current applications. The '6015' designation typically refers to the approximate case size in millimeters. These components are engineered to provide reliable performance in various power management topologies.

Fixed Inductors Replacement Considerations

The CTSPMA6020F-6R8M is a documented substitute offering similar inductance but with different current ratings and dimensions. Verify compatibility regarding lead-free status and RoHS compliance if environmental regulations apply. Check if the alternative package fits the existing PCB layout without modification.
