CTSPMA6020F-6R8M

$0.99

Description：POWR INDUCTOR SMD SHIELDED 6.8UH
Series：CTSPMA6020F
Mfr：Central Technologies
Package：Tape & Reel (TR)

SKU:26420ec2ac46 Category: Fixed Inductors Brand: Central Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

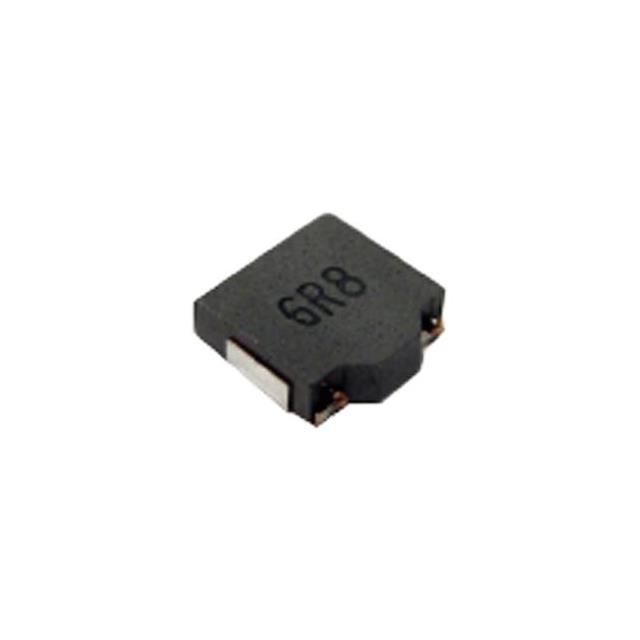

CTSPMA6020F-6R8M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is POWR INDUCTOR SMD SHIELDED 6.8UH. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for CTSPMA6020F-6R8M

Description：POWR INDUCTOR SMD SHIELDED 6.8UH
Series：CTSPMA6020F
Mfr：Central Technologies
Package：Tape & Reel (TR)
Type：-
Material - Core：-
Inductance：6.8 µH
Tolerance：±20%
Current Rating (Amps)：4:00 AM
Current - Saturation (Isat)：5.2A
Shielding：Shielded
DC Resistance (DCR)：63mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-55°C ~ 155°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.280" L x 0.280" W (7.10mm x 7.10mm)
Height - Seated (Max)：0.079" (2.00mm)
Features：-

Fixed Inductors datasheet and documents for CTSPMA6020F-6R8M

CTSPMA6020F-6R8M

Fixed Inductors Overview

The CTSPMA6020F-6R8M is a shielded surface-mount power inductor manufactured by Central Technologies. It features a nominal inductance of 6.8 µH with a tolerance of ±20%. The component has a DC resistance (DCR) of 63 mΩ and supports a current rating of 5.2 A. Its physical dimensions are 7.1 mm in length, 6.7 mm in width, and 2.0 mm in height. The device operates within a standard temperature range suitable for general electronic applications.

Fixed Inductors Feature Summary

Shielded construction to minimize electromagnetic interference
Surface-mount design for automated assembly integration
High current handling capability for power circuits

Fixed Inductors Applications

Power supply filtering
DC-DC converter input/output stages
General-purpose power inductor applications

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct specifications. Confirm that the requested part matches the required inductance value, current rating, and physical footprint dimensions. Check for RoHS compliance status if environmental regulations apply to your project requirements.

Fixed Inductors Selection Notes

Select this component when a shielded SMD inductor with a 6.8 µH nominal value is required. Ensure the application current does not exceed the rated 5.2 A limit. Verify that the PCB layout accommodates the 7.1 x 6.7 mm footprint and 2.0 mm height constraints. Consider the low DCR for efficiency-sensitive designs.

Fixed Inductors Part Context

This part belongs to the CTSPMA series of fixed inductors from Central Technologies. The series offers various inductance values and current ratings in a compact shielded package. It is designed for use in modern electronics where space constraints and EMI reduction are critical factors in circuit board design.
