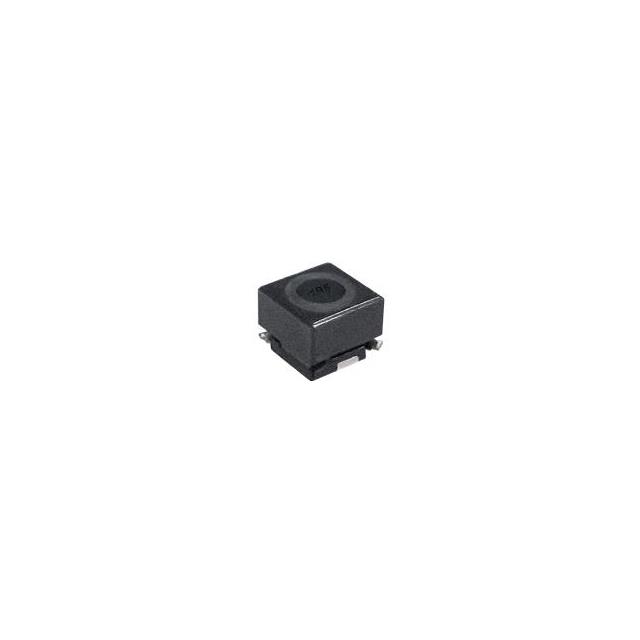

CTSR0604F-100M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Central Technologies. Its product description is 10UH SMD SHLDED POWER INDUCTOR. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for CTSR0604F-100M
- Description：10UH SMD SHLDED POWER INDUCTOR
- Series：CTSR0604F
- Mfr：Central Technologies
- Package：Tape & Reel (TR)
- Type：-
- Material - Core：-
- Inductance：10 µH
- Tolerance：±20%
- Current Rating (Amps)：1.3 A
- Current - Saturation (Isat)：-
- Shielding：Shielded
- DC Resistance (DCR)：120mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-40°C ~ 105°C
- Inductance Frequency - Test：1 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.256" L x 0.256" W (6.50mm x 6.50mm)
- Height - Seated (Max)：0.193" (4.90mm)
- Features：-
Fixed Inductors datasheet and documents for CTSR0604F-100M
Fixed Inductors Overview
The CTSR0604F-100M is a shielded surface-mount power inductor from Central Technologies. It features a nominal inductance of 10 µH with a maximum DC resistance of 120 mΩ. The component supports a typical RMS current of 1.3 A and operates within a temperature range of -55°C to +125°C.
Fixed Inductors Feature Summary
- Shielded magnetic structure for reduced electromagnetic interference
- Surface-mount design optimized for automated assembly processes
- High saturation current capability suitable for power supply applications
Fixed Inductors Applications
- DC-DC converter output filtering
- Point-of-load regulation circuits
- General-purpose power supply input stages
Fixed Inductors Procurement Notes
Verify the specific suffix 'F' matches the required RoHS compliance status and terminal finish specifications. Confirm that the standard package dimensions align with the target PCB footprint requirements before finalizing procurement orders.
Fixed Inductors Selection Notes
Select this component when a compact shielded inductor is required for high-current DC-DC conversion. Ensure the 1.3 A RMS rating meets the continuous load requirements and verify that the 120 mΩ DCR fits within the system's efficiency constraints.
Fixed Inductors Part Context
This part belongs to the CTSR0604F series, which offers various inductance values in a standardized non-standard rectangular SMD package. The series is designed for general-purpose power electronics applications requiring reliable performance in space-constrained environments.
Fixed Inductors Replacement Considerations
Direct substitutes include other 10 µH shielded SMD power inductors with comparable current ratings and physical dimensions. Verify pin compatibility and thermal characteristics when considering alternative manufacturers.
