CTSR0908F-682L

Fixed Inductors Overview

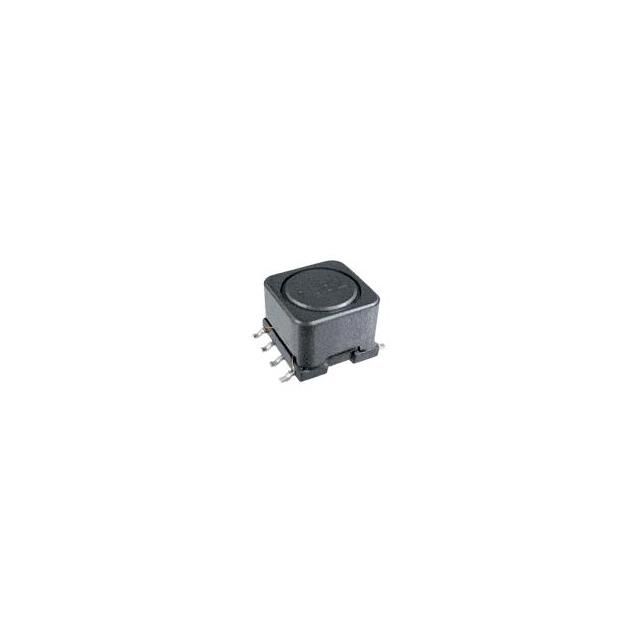

The CTSR0908F-682L is a surface-mount shielded power inductor from Central Technologies, featuring a 6.8 mH nominal inductance with ±15% or ±20% tolerance options. It operates at a test frequency of 1.0 kHz and exhibits a maximum DC resistance of 16.5 Ohms. The component supports a rated current of 90 mA at 252 kHz and utilizes an 8-SMD package configuration.

Fixed Inductors Feature Summary

• Shielded magnetic design to minimize electromagnetic interference
• Surface-mount construction for automated assembly integration
• Tape and reel packaging format for high-volume processing

Fixed Inductors Applications

• Power supply filtering circuits
• DC-DC converter energy storage
• Signal conditioning networks

Fixed Inductors Procurement Notes

Verify the specific inductance tolerance suffix required for your design, as the series offers both ±15% and ±20% variants. Confirm the exact package dimensions against your PCB footprint requirements before finalizing the order. Ensure the supplier provides official datasheets matching the specific part number variant to guarantee electrical parameter compliance.

Fixed Inductors Selection Notes

Select this component when a compact shielded inductor is needed for low-current applications requiring 6.8 mH inductance. Evaluate the 16.5 Ohm DC resistance against your circuit's efficiency targets. Consider the 90 mA current rating to ensure it meets the peak load requirements of your power stage without saturation.

Fixed Inductors Part Context

This part belongs to the CTSR0908F series of shielded power inductors manufactured by Central Technologies. The series provides various inductance values within a standardized 8-SMD form factor, designed for space-constrained electronic designs requiring reliable magnetic shielding and consistent performance characteristics.

Fixed Inductors Replacement Considerations

Direct substitutes must match the 6.8 mH value, 8-SMD package, and shielded construction. Verify that any alternative component maintains comparable DC resistance and current ratings to ensure circuit compatibility.
