CTSRU1038F-151N

Fixed Inductors Overview

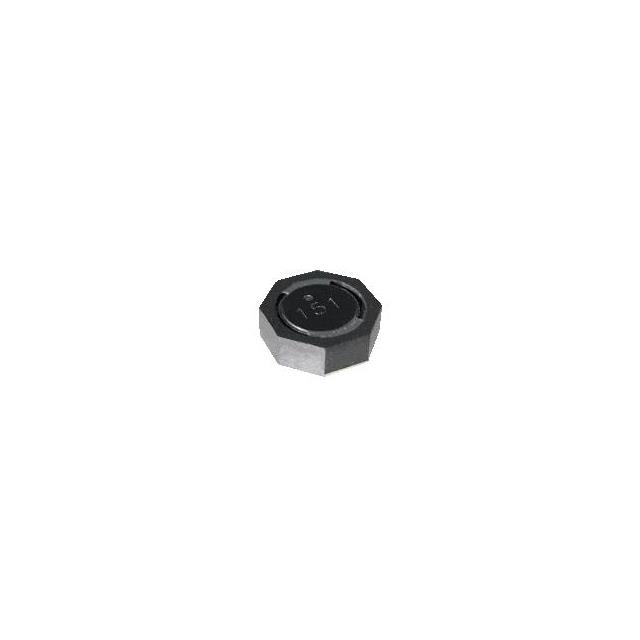

The CTSRU1038F-151N is a shielded surface-mount power inductor from Central Technologies. It features a nominal inductance of 150 µH and a maximum DC resistance of 476 mΩ. The component supports a saturation current of 900 mA and operates within a temperature range of -55°C to +125°C. Designed for compact applications, it utilizes a non-standard footprint suitable for automated assembly.

Fixed Inductors Feature Summary

• Integrated magnetic shielding reduces electromagnetic interference
• High thermal stability for demanding environments
• Compact surface-mount design facilitates space-constrained layouts

Fixed Inductors Applications

• DC-DC converter output filtering
• Power supply input stages
• General-purpose signal conditioning circuits

Fixed Inductors Procurement Notes

Verify the specific package dimensions against the official datasheet before integration, as the footprint is classified as non-standard. Confirm that the 900 mA current rating aligns with the peak load requirements of the target circuit to prevent performance degradation or failure under stress conditions.

Fixed Inductors Selection Notes

Select this component when high inductance density and low profile are required in power management designs. The shielded construction makes it suitable for noise-sensitive applications where stray magnetic fields must be contained. Ensure the operating temperature range covers the expected environmental extremes of the final device.

Fixed Inductors Part Context

This part belongs to the CTSRU series of fixed inductors manufactured by Central Technologies. The series provides various inductance values optimized for power electronics. The CTSRU1038F-151N specifically targets applications requiring robust shielding and stable performance at moderate current levels.

Fixed Inductors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
