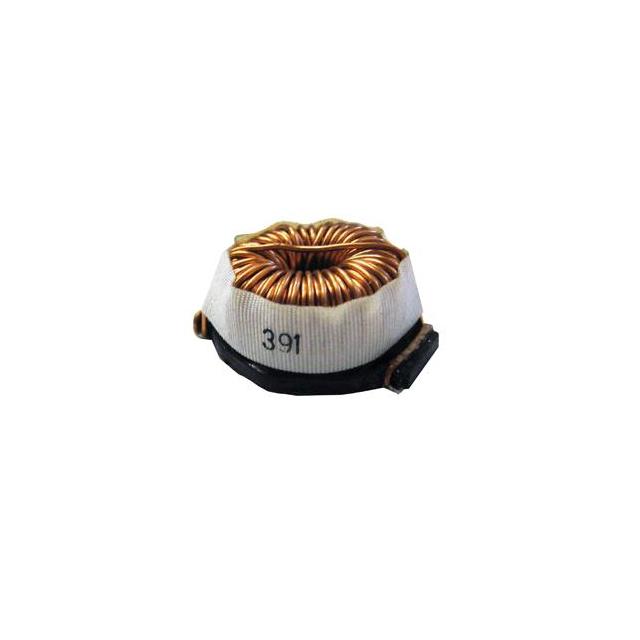

CTTSMD2110F-391K

$7.36

Description：HIGH CURRENT SMD POWER INDUCTOR
Series：CTTSMD2110F
Mfr：Central Technologies
Package：Bulk

SKU:98370eba3b70 Category: Fixed Inductors Brand: Central Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：HIGH CURRENT SMD POWER INDUCTOR
Series：CTTSMD2110F
Mfr：Central Technologies
Package：Bulk
Type：Drum Core, Wirewound
Material - Core：Iron
Inductance：390 µH
Tolerance：±10%
Current Rating (Amps)：-
Current - Saturation (Isat)：2.79A
Shielding：Unshielded
DC Resistance (DCR)：98mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-55°C ~ 105°C
Inductance Frequency - Test：1 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：1.201" L x 1.098" W (30.50mm x 27.90mm)
Height - Seated (Max)：0.600" (15.24mm)
Features：-

Download product information

CTTSMD2110F-391K

Overview

The CTTSMD2110F-391K is a fixed inductor manufactured by Central Technologies, classified under the High Current SMD Power Inductors series. This component features an unshielded drum core construction with wirewound technology. It provides an inductance value of 390 µH and exhibits a maximum DC resistance of 98 mOhm. The physical dimensions are specified as 27.9 mm in length, 30.5 mm in width, and 15.24 mm in height.

Feature Summary

Unshielded drum core design for high current applications
Wirewound construction technique
Surface mount device (SMD) form factor

Applications

Power supply circuits
High current filtering applications
General electronic equipment requiring power inductors

Procurement Notes

Verify availability status carefully as this specific part number may be discontinued or unavailable for immediate shipment. Contact sales representatives directly to confirm current stock levels and explore alternative options if necessary. Ensure that the required specifications match the unshielded drum core characteristics before finalizing procurement decisions.

Selection Notes

Select this component when an unshielded drum core inductor is required for high current applications. Consider the 390 µH inductance and 98 mOhm resistance limits against circuit requirements. Evaluate the physical footprint of 27.9 x 30.5 x 15.24 mm for board space constraints. Confirm compatibility with surface mount assembly processes.

Part Context

This inductor belongs to the CTTSMD2110F series from Central Technologies, designed for high current SMD power applications. The series includes various inductance values such as 100 µH and 151 µH variants. These components utilize industry-standard magnets and are intended for diverse applications including aerospace contexts.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer sales channels for alternative options due to potential discontinuation status.
