CTUF0917VF-103MR25

Common Mode Chokes Overview

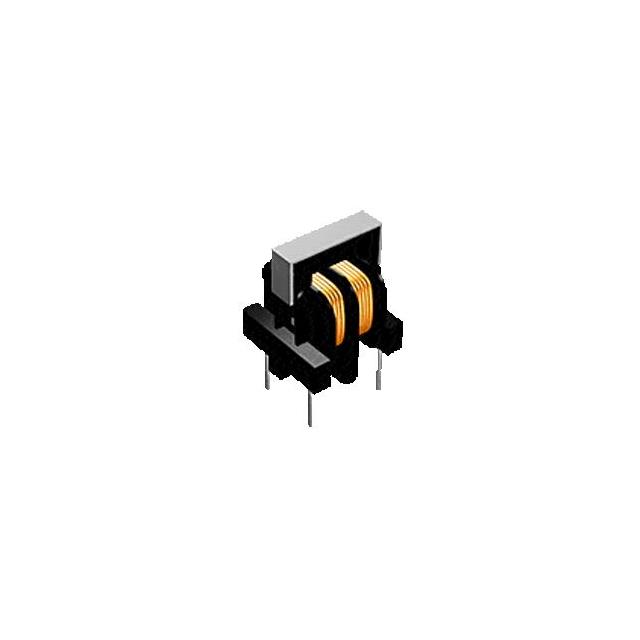

The CTUF0917VF-103MR25 is a two-line common mode choke coil manufactured by Central Technologies. It features a through-hole mounting style with radial leads. The component has a rated AC voltage of 250V and an operating temperature range from -20°C to +105°C. Key electrical specifications include a DC resistance (DCR) of 3.5 Ohms and a current rating of 250mA. Physical dimensions are 18.00mm in length and 12.00mm in width.

Common Mode Chokes Feature Summary

• Designed for power supply line applications
• RoHS compliant and lead-free construction
• Radial through-hole package for standard PCB integration

Common Mode Chokes Applications

• Power supply line filtering
• Common mode noise suppression in electronic circuits

Common Mode Chokes Procurement Notes

Verify the exact part number CTUF0917VF-103MR25 against official Central Technologies documentation to confirm specifications. Ensure compatibility with your circuit's voltage and current requirements. Check for RoHS compliance status if required by your manufacturing standards. Confirm physical dimensions match your PCB layout constraints before ordering.

Common Mode Chokes Selection Notes

Select this component when a through-hole common mode choke is required for low-current applications up to 250mA. The 3.5 Ohm DCR and 250VAC rating suit specific power line filtering needs. Consider the 18.00mm x 12.00mm footprint for mechanical fit. Verify the -20°C to +105°C temperature range meets environmental conditions.

Common Mode Chokes Part Context

This component belongs to the CTUF0917VF series of common mode chokes from Central Technologies. The series is characterized by radial through-hole construction and is intended for power supply line applications. Other variants in the series may differ in inductance or current ratings, but share similar form factors and voltage ratings.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers for this specific model were not found in available documentation. Cross-referencing requires matching inductance, current rating, and physical dimensions with other manufacturers' offerings.
