CTVF-1-100K-10

Fixed Inductors Overview

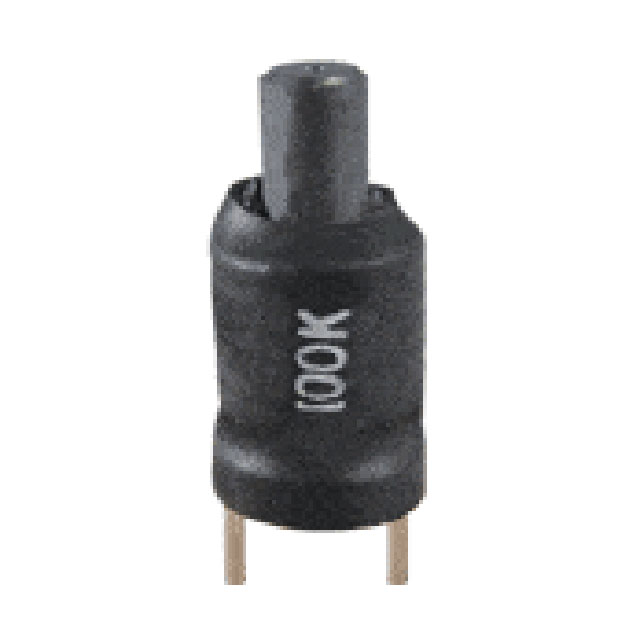

The CTVF-1-100K-10 is a fixed, unshielded wirewound inductor manufactured by Central Technologies. It features a radial vertical cylinder package with an inductance of 10 μH and a maximum DC resistance of 13 mΩ. The component operates within a temperature range of -55°C to +125°C and maintains an inductance tolerance of ±10%. Its physical dimensions are 16 mm in diameter and 27.9 mm in height when seated.

Fixed Inductors Feature Summary

• Unshielded wirewound construction for general power applications
• Radial vertical cylinder leaded package design
• High operating temperature capability up to 125°C

Fixed Inductors Applications

• General purpose power filtering
• Signal processing circuits
• Industrial control systems

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current documentation to ensure correct tolerance and packaging specifications. Confirm that the unshielded design aligns with electromagnetic interference requirements for the target application environment before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component for applications requiring a 10 μH inductance with low DC resistance. Ensure the radial vertical form factor fits the available board space. Consider the unshielded nature of the part regarding nearby sensitive components or magnetic field interactions during the circuit layout phase.

Fixed Inductors Part Context

This part belongs to the CTVF series of fixed inductors from Central Technologies. The series includes various inductance values and package sizes designed for through-hole mounting. The CTVF-1-100K-10 specifically represents the 10 μH variant within this product line.

Fixed Inductors Replacement Considerations

Consult official cross-reference lists for verified substitutes. Generic replacements must match the 10 μH inductance, 13 mΩ max resistance, and radial vertical package dimensions to maintain mechanical and electrical compatibility.
