CV201210-R82K

Fixed Inductors Overview

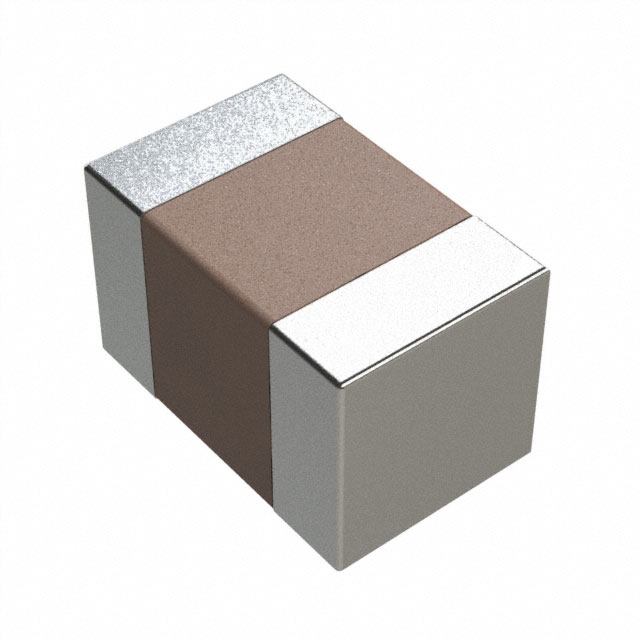

The CV201210-R82K is a fixed inductor from the Bourns CV201210 series, classified as a shielded multilayer chip inductor. It features an inductance of 0.82 µH with a tolerance of ±10%. The component is designed for surface mount technology (SMD) applications and utilizes a ferrite multi-layer construction. It operates within a standard 0805 package dimension, equivalent to 2012 metric size. The device has a maximum DC resistance of 1 Ohm and supports a current rating of 150 mA. These specifications define its electrical performance characteristics for circuit integration.

Fixed Inductors Feature Summary

• Shielded multilayer construction for reduced electromagnetic interference
• Ferrite core material optimized for high-frequency signal integrity
• Surface mount design compatible with automated assembly processes

Fixed Inductors Applications

• Signal filtering in portable electronic devices
• Power supply input/output stages
• RF circuit impedance matching networks

Fixed Inductors Procurement Notes

Verify the exact part number against official Bourns documentation to ensure compliance with specified electrical parameters. Confirm that the received components match the required 0.82 µH inductance and 0805 package dimensions. Check for any specific handling instructions regarding moisture sensitivity levels prior to soldering. Ensure that the supplier provides traceability data consistent with manufacturer standards for quality assurance purposes.

Fixed Inductors Selection Notes

Select this component when a compact, shielded inductor is required for space-constrained designs. The 0805 footprint offers a balance between size and current handling capabilities. Consider the 150 mA rating to ensure it meets the operational current demands of the target circuit without saturation. The shielded nature makes it suitable for environments sensitive to magnetic field leakage.

Fixed Inductors Part Context

This part belongs to the CV201210 series of ferrite multi-layer chip inductors manufactured by Bourns Inc. The series is engineered for general-purpose electronic applications requiring reliable inductive components. The R82K suffix denotes the specific inductance value and tolerance within the product line. The series is widely used in consumer electronics and telecommunications equipment.

Fixed Inductors Replacement Considerations

The PM0805G-1R0J-RC is listed as a cross-reference item with similar 0805 form factor characteristics. Verify electrical compatibility before substitution. No other direct substitutes are confirmed in public documentation.
