Product Detailed Parameters
- Description：VCO 2050MHZ SMD 12.7X12.7MM
- Series：CVCO55
- Mfr：Crystek Corporation
- Package：Strip
- Frequency Range：1500 ~ 2600MHz
- Frequency - Center：2050MHz
- Voltage - Supply：-
- Tuning Voltage (VDC)：-
- 2nd Harmonic, Typ (dBc)：-
- Icc Max：-
- Pushing (MHz/V)：-
- Power (dBm)：-
- Phase Noise Typ (dBc/Hz)：-
- Operating Temperature：-
- Package / Case：-
- Size / Dimension：-
- Height：-
Download product information
Overview

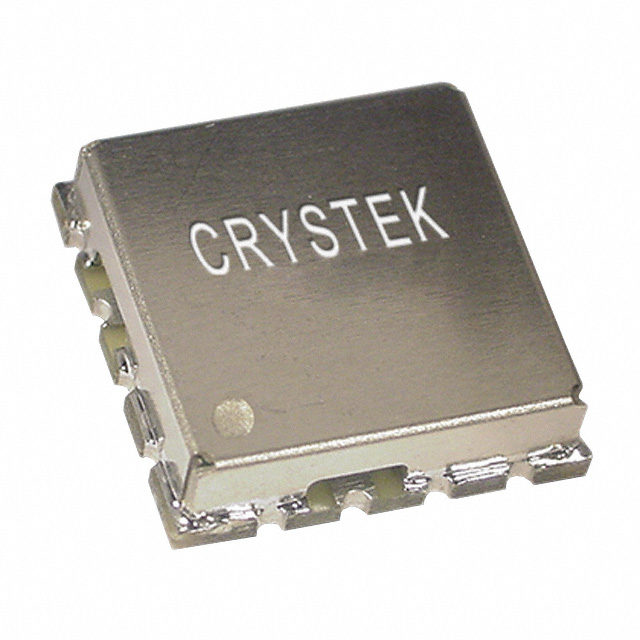

The CVCO55-602122 is a surface-mount voltage-controlled oscillator (VCO) manufactured by Crystek Corporation. It operates within a frequency range of 1500 MHz to 2600 MHz, with a center frequency of 2050 MHz. The component utilizes an SMD package measuring 12.7 mm by 12.7 mm. It complies with RoHS standards and is lead-free.
Feature Summary
- Surface-mount design for automated assembly
- RoHS compliant and lead-free construction
- Voltage-controlled oscillation capability
Applications
- Wireless communication systems
- Microwave radio applications
- Telecommunications equipment
Procurement Notes
Verify the specific part number CVCO55-602122 against official Crystek Corporation documentation to confirm technical specifications. Ensure compatibility with system requirements regarding frequency range and package dimensions. Cross-reference datasheets for electrical parameters before integration.
Selection Notes
Select this VCO based on the required 1500-2600 MHz operating range and 2050 MHz center frequency. Consider the 12.7x12.7mm SMD footprint for PCB layout constraints. Verify RoHS compliance needs for environmental regulations.
Part Context
This component belongs to the CVCO55 series of voltage-controlled oscillators from Crystek Corporation. The series offers various frequency options in a standardized surface-mount package, catering to diverse RF and microwave application requirements across industrial and telecommunications sectors.
Replacement Considerations
Consult official Crystek substitution guides for compatible alternatives. Verify that any substitute maintains the 1500-2600 MHz frequency range and identical 12.7x12.7mm SMD package dimensions to ensure mechanical and electrical compatibility.
